| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR275-10DP 1+1 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protector | Place Of Origin: | Zhejiang, China (Mainland) |
|---|---|---|---|
| Brand Name: | BRITEC | Type: | Type 3 |
| Material:: | Thermal Plastic | Type Item: | Surge Arrester |
| Rated Voltage: | 275V | Delivery Time: | 20Days |
| Imax: | 10kA | Pole No.: | 1P+NPE |
| High Light: | lightning surge protector,power surge arrester |
||

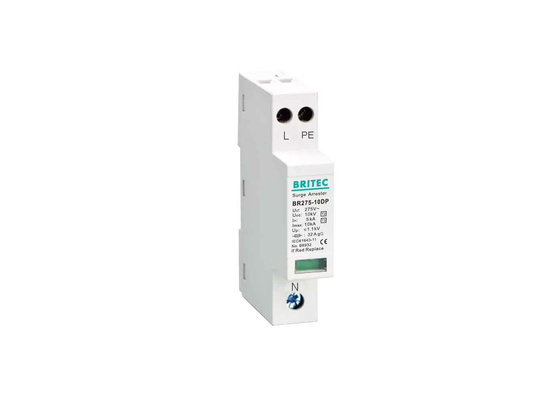

Type 3 Series Power Class III Surge Protector 10KA Arrester 275V
Type 3 Series Power Class III Current Surge Protector Features:
Type 3 Series Power Class III Current Surge Protector Characteristic:
| BR275-10DP 1+1 | |
| Pole | 1+1 |
| SPD classification according to EN61643-11 | Type 3 |
| SPD classification according to IEC61643-11 | Class III |
| Norminal a.c. voltage Un | 230V |
| Max. continuous operating a.c. voltage Uc | 275V |
| Max. continuous operating d.c. voltage Uc | 300V |
| Nominal discharge current (8/20us) In | 5kA |
| Max. discharge current (8/20us) Imax | 10kA |
| Combined impulse Uoc | 10kV |
| Voltage protection level Up | ≤1100V |
| Response time tA | ≤25ns |
| Operating state/fault indication | green/red |
| Cross-section area (Min.) | 2.5mm2 |
| Cross-section area (Max.) | 16mm2 |
| For mounting on | 35mm Din rail |
| Operating temperature range Tu | -40℃—80℃ |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
| Remote alarm | Optional |
| Color | White, Grey |
Dimension:
Type 3 Series Power Class III Current Surge Protector Applications:
To shunt and pressure limiting the indirect lightning current, direct lightning current or other instantaneous overvoltage.
Advantage:
• Over 17 years’ experience in production and processing.
• Faster product innovation, production specialization, timely delivery.
• Strict quality inspection procedure.
Company profile:
Britec is located in Yueqing city with beautiful scenery and developed science and education. It is specialized in power surge protection devices. A high-tech enterprise integrating product development, production and sales. The company's products have independent intellectual property rights and have passed the test of national professional institutions, which also obtained the state. The company has passed the ISO9001 International Quality Management System.
Certificate:
Payment:
FAQ:
Q1: Are you manufacturer of trading company?
A1: We are a manufacturer in Yueqing, Zhejiang, China.
Q2: When can we get the reply?
A2: Any inquiries will be replied within 24 hours, but holidays are excepted.
Q3: Can I get some samples?
A3: Yes, sample order is available for quality check and market test.
Q4: What is your payment term?
A4: We usually accepet T/T as the main payment term, and other payments can also be negotiated.
Q5: What is the delivery time?
A5: It usually takes about 20 days to prouduce the products.
