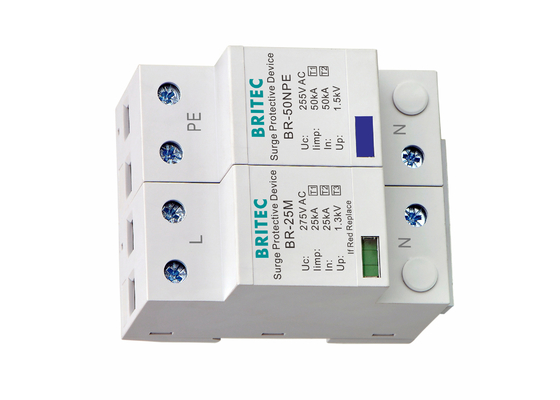

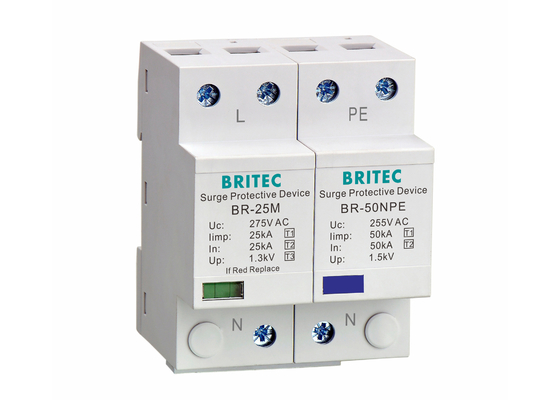

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series

  • AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series
  • AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series
AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-25M 1+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: SPD Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Type: Type 1 + Type 2 + Type 3
Material: Thermal Plastic Type Item: Surge Protection
Rated Voltage: 220V Uc: 275V
Usage: Low Voltage Delivery Time: 20Days
Highlight:

lightning surge protector

,

power surge arrester

AC Lightning 25KA 1.5KV 1P+NPE B+C Series Power SPD Surge Suppressor


AC Lightning Power SPD Surge Suppressor Feature:


High energy surge protection.
Designed according to IEC and GB standards.
The products with a strong surge discharge capacity, discharge current of each 25~100kA (8/20μs), 25kA (10/350μs).
Failure detection indicator.
Remote alarm interface: optional.
Standard modular installation.



AC Lightning Power SPD Surge Suppressor Products detail:


 BR-25M 1+1
SPD classification according to EN61643-11 with 5MType 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M         Class I + Class II + Class III
Rated voltage                                                                            Un220V AC 50~60Hz
Max. continuous operating a.c. voltage                                     Uc275V
Lightning impulse current (10/350us) (L-N / N-PE)                 Iimp25kA / 100kA
Nominal discharge current (8/20us) (L-N / N-PE)                       In25kA / 100kA
Maximum discharge current (8/20us) (L-N / N-PE)                Imax100kA
Combined impluse                                                                   Uoc20kV
Voltage protection level (L-N / N-PE)                                        Up≤1.3kV / 1.5kV
Max. backup fuse315A
Follow current extinguishing capability a.c. (N-PE)                     lfi100A rms
Response time                                                                           tA≤25ns
Failure indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Operating temperature range                                                    Tu-40℃—80℃
Enclosure materialThermal plastic UL94-V0
Degree of protectionIP20
Remote alarmOptional
ColorWhite, Grey


Dimension:

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series 0


AC Lightning Power SPD Surge Suppressor Applications:

To shunt and pressure limiting the indirect lightning current, direct lightning current or other instantaneous overvoltage.



Our Services:


Over 17 years’ experience in production and processing.
Faster product innovation, production specialization, timely delivery.
Strict quality inspection procedure.


Company information:

As a manufacture, we concentrate on developing & manufacturing new products which make our business partners more competitive and ahead than their competitor. We invest considerable part of our annual profit in this to keep sustainable development for ourselves and for our business partner. OEM projects from our partners abroad are also developing, with our advanced idea of protecting markets. Our company's surge protection sold all over the world. And still rapidly enlarge market with competitive price and good quality. Customers are regarded as our long term partner rather than simply buyers. For sure, Britec Electric Wenzhou CO.,LTD is your right partners for purchasing and developing quality
lightning arrester in China.

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series 1

Certificate:

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series 2

Factory:

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series 3

Shipping:

AC Lightning Power SPD Surge Suppressor 25KA 1.5KV 1P + NPE B + C Series 4

FAQ:

Q1: Are you a factory or a trading company?
  A: We are a factory and located in Yueqing City, Zhejiang Province, China.

Q2: What's the payment term?
  A: We accept T/T 30% deposit and 70% before shipment, also Paypal is ok!

Q3: How to solve the problem of products?
  A: We provide quality guarantees, and after-sales service can provide solutions quickly and online to ensure the interests of customers.

Q4: Do you accept joint research and development of new products?
  A: Of course, we can jointly develop new products based on samples or drawings provided by our customers. The details can be discussed.

Q5: Is regional product agents available?
  A: We are happy to accept agency agreements, offer more favorable prices and achieve long-term friendly relationships.
