Power Surge Protection Device
>

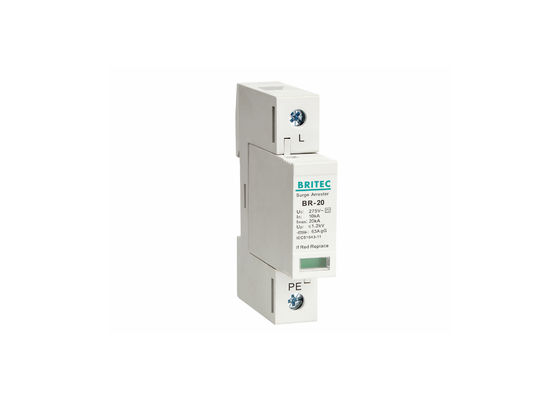

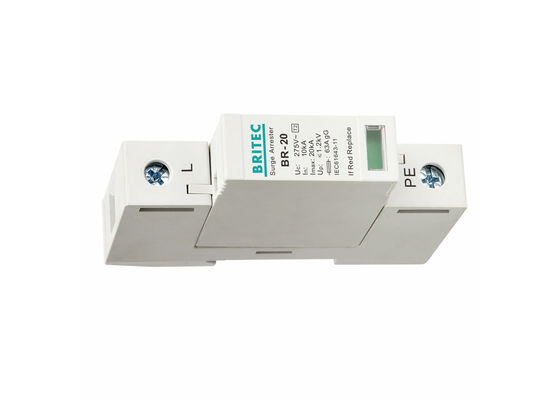

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-20 275 1P
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Model Number:
BR-20 275 1P
Item Name:
Surge Arrestor
Place Of Origin:
Zhejiang, China (Mainland)
Brand Name:
BRITEC
Type:
Type 2
Material:
Thermal Plastic
Type Item:
BR-20 275 1P
Uc:
275V
In:
10kA
Usage:
Low Voltage
Delivery Time:
20 Days
Highlight:

High Light

Highlight:

lightning protection device

,

power surge arrester

Trading Information
Minimum Order Quantity:
100 Piece/Pieces
Packaging Details:
EXPORT PACKING
Delivery Time:
Shipped in 15 days after payment
Payment Terms:
L/C, D/A, T/T, Western Union
Supply Ability:
50000 Piece/Pieces Month
Product Description

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector



AC 275V Surge Arrestor Single Phase SPD Feature:



Single phase protection.
Indoor fixed installation, voltage limited type.
Designed according to IEC 61643-1.
Pluggable module, easy for installation and maintenance.
High discharge capacity, quick response.
When the SPD works normally, the visible window displays green, and when it fails, it displays red.



AC 275V Surge Arrestor Single Phase SPD Technology characteristic:


  BR-20 275 1P
Max. continuous operating a.c. voltage                 Uc 275V
Nominal discharge current (8/20us)                        In 10kA
Max. discharge current (8/20us)                         Imax 20kA
Voltage protection level                                         Up ≤1.2kV
Response time                                                        tA ≤25ns
Max. backup fuse 63A
Operating temperature range                                 Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                      Thermal plastic UL94-V0
Dimension 1mod
Test standards IEC61643-1



Dimension:



AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector 0



AC 275V Surge Arrestor Single Phase SPD Application:

Protecting low voltage equipment from surge damages.
Applied in modular SPD Class II (Class C) power supply system.

Company Information:

Wenzhou Britec Electric Co.,Ltd. is a specialized manufacturer of surge protection device, founded in 2003. As a professional SPD manufacturer in China, we can supply all kinds of low voltage surge protector and our products has been widely used in electric power, construction and other fields. Our company has the most advanced testing equipment, which can ensure all of our products are excellent. Our products have gained CE, CB and TUV certificates.

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector 1

Shipping:

If the quantity of order is not very big, we could send them to you by express delivery, such as TNT, DHL, UPS or EMS etc.
If order is big, we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent. Our long-term cooperated agent also available.

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector 2

Certifications:

17 years factory experience and export experience. High quality and competitive price win long term cooperation with customers.
Our factory's management based on ISO9001.
Our products meet the standard CE, CB, TUV certificates.

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector 3

Factory workshop:

AC 275V Surge Arrestor Single Phase SPD 20kA Power Supply Surge Protector 4

FAQ:

Q1. What is your terms of packing?
  A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
  A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
  A: FOB, CIF, EXW.

Q4. How about your delivery time?
  A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
  A: Yes, we can produce by your samples or technical drawings.
