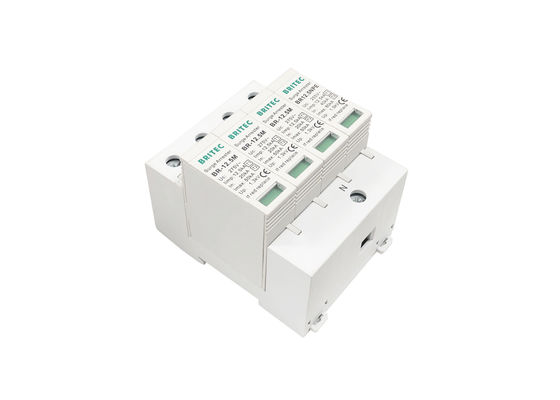

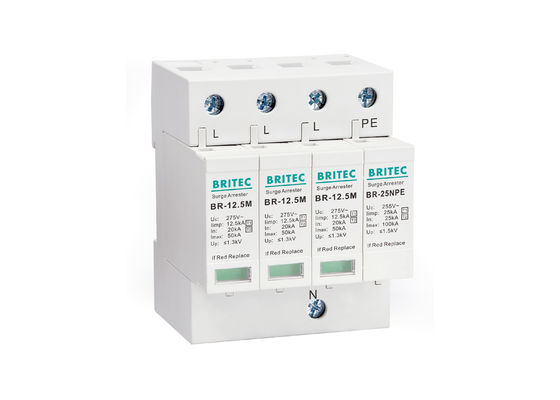

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors
AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors
AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M 275 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Arrestor Type: Type 1+2
Material: Thermal Plastic Type Item: Power Lightning Protection
Color: White Uc: 275v
Iimp: 12.5kA Usage: Low Voltage
Delivery Time: 20Days Standard: IEC 61643-1
Highlight:

lightning protection device

,

lightning surge protector

AC 275v Type 3pole+NPE Power Lightning Protection Class 1+2 Surge Arrestors



AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Feature:



• Class I+II, Class B+C 12.5kA high discharge capacity TT and TN-S system lightning protector.
• Designed according to IEC 61643-1.
• Pluggable module, high discharge capacity, quick response.



AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Technology characteristic:



  BR-12.5M 275 3+1
Max. continuous operating a.c. voltage                             Uc 275V
Lightning impulse current (10/350us)                              Iimp 12.5kA
Max. discharge current (8/20us) (L-N/N-PE)                  Imax 50kA / 70kA
Voltage protection level (L-N/N-PE)                                   Up ≤1.3kV / ≤1.5kV
Response time (L-N/N-PE)                                                 tA ≤25ns / ≤100ns
Max. backup fuse 160A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2​
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Dimension 4mods
Test standards IEC 61643-1



Dimension:



AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 0



AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Application:

• Designed to protect low voltage devices from surge damage, mainly used in power supply system such as power distribution room, distribution cabinet and other important power supply system, specially designed for TT and TN-S system.
• Applied in SPD Class I+II (Class B+C) for power supply system of lightning current surge protection.

Certificate:

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 1

Shipping:

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 2

Payment:

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 3

Production Flow:

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 4

Test Facilities:

In order to test its products internally for standards compliance and to evolve toward greater reliability we has test site.

AC 275v Type 1+2 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestors 5

FAQ:

Q1: What's your warranty?
A1: The warranty is 2 years and we deliver new and faultless products.


Q2: What's the standard of package?

A2: Inner box and out carton are made as per international standard and we can make special design according to customer's need.



Q3: Could you do OEM for us?
A3: Sure, OEM is acceptable, and please supply with the brand letter of Authorization.
