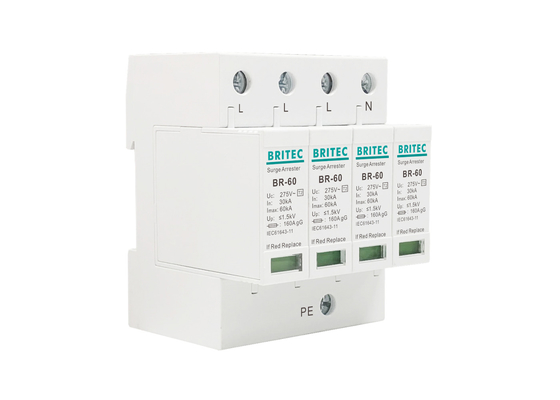

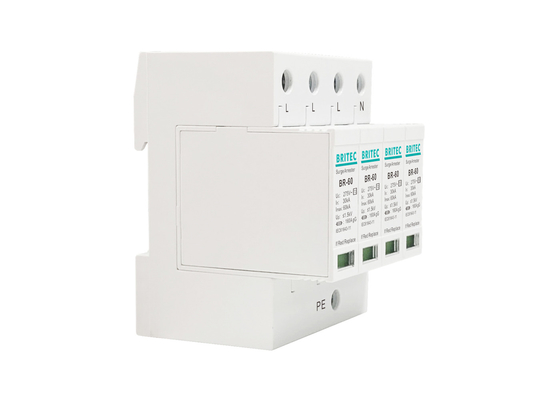

Name: AC 385V 60KA SPD Power Surge Protection Device Lightning Protection of Class II
Brand: BRITEC
SKU: BR-60 4P
Rating: 4.8 (119 reviews)

Home Products Power Surge Protection Device

AC 385V 60KA SPD Power Surge Protection Device Lightning Protection of Class II

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-60 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Power Surge Protection	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Type:	Type 2
Material:	Thermal Plastic	Type Item:	Lightning Protection
Color:	White,Grey	Voltage:	AC 385V
Usage:	Low Voltage	Delivery Time:	20 Days
High Light:	lightning protection device , lightning surge protector

AC 385V Power Surge Protection 60KA SPD Device Lightning Protection of Class II

AC 385V 60KA SPD Power Surge Protection Device Feature:

• 385V surge protective device.

• Stable performance.

• Extremely quick respond, large intake capacity.

• No leakage current, long work life, simple maintenance.

• 35mm guide rail installation, standardized module design.

• The product is a surge protector for the low-voltage power distribution system, and the voltage limiting function component is composed of varistors.

• When the surge protector fails due to breakdown, the fail-out device can automatically detach it from the grid, and the visual alarm indicates green (normal) red (fault).

AC 385V 60KA SPD Power Surge Protection Device Technology characteristic:

	BR-60 4P
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Pretection Mode	4P
Max. continuous operating a.c. voltage Uc	385V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤2.0kV
Degree of protection	IP20
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Humidity	≤95%(25℃)
Operating state/fault indication	green/red

Dimension:

AC 385V 60KA SPD Power Surge Protection Device Application:

To protect the devices, functional isolations and over voltage sensitive consumer equipment of power distribution systems against all lightning and over voltage damages.

Certification:

AC 385V 60KA SPD Power Surge Protection Device Lightning Protection of Class II 1

Our Company:

Since 2003, located in Yueqing City of Zhejiang province, with nearly 100 skillful employees, is a professional and leading manufacture engaged in R&D, production, sales and service of surge protection.

AC 385V 60KA SPD Power Surge Protection Device Lightning Protection of Class II 2

Our factory:

AC 385V 60KA SPD Power Surge Protection Device Lightning Protection of Class II 3

Shipping:

FAQ:

Q1: I’m interested in your products, do you have them in stock?
A: Please ask our customer service to check our inventory status. We usually reply within 24 hours.

Q2: If I’m interested in your product, but I’m not sure if I can use it, can I get samples from you?
A: Yes, we do take sample order! We also can help to suggest items or provide our references.

Q3: If I order products from you, how soon can I receive them?
A: It depends on which item do you need, if we have it in stock, we can ship it right away. Otherwise, it usually takes about 20 days of delivery.

Q4: What is your packaging style?
A: We offer carton packaging. Please let us know if you have special requests.
