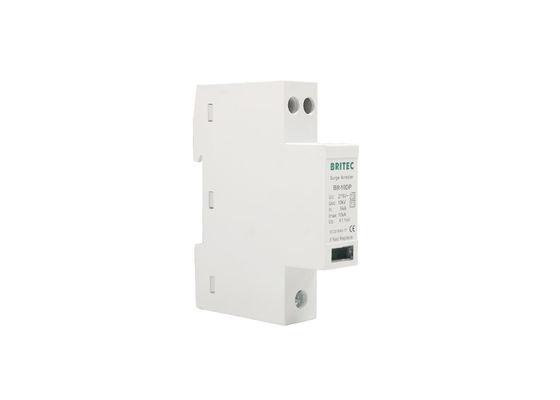

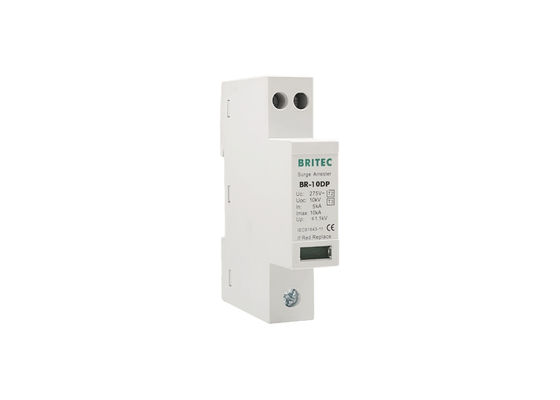

10kA Power Lightning Surge Protection Devices SPD 75V 2P Thermal Plastic

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-10DP 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Protection	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Type:	Type 3
Material:	Thermal Plastic	Type Item:	Power Surge Protection Device
Color:	White, Grey	Rated Voltage:	60V
Usage:	Low Voltage	Delivery Time:	20 Days
Highlight:	lightning protection device , power surge arrester

10kA Lightning Protection SPD 75V 2P Power Surge Protector Device

10kA Power Lightning Surge Protection Devices SPD Feature:

• Product Type: Single phase 10kA 2P Power Surge Protector.

• Module design, convenient installation.

• Rated Voltage: 60V AC (Can be customized according to client's request).

• Smallness leak current, response quickly, less residual voltage.

• Nominal Discharge Current (8/20us): 5kA.

• Maximum Discharge Current (8/20us): 10kA.

• Signal indication device, green (normal), red (abnormal).

• Protection Mode: 2P.

• New technology, highly energy.

• Voltage Protection: Less than 500V.

• Production Standard: IEC61643-1.

10kA Power Lightning Surge Protection Devices SPD Technology characteristic:

	BR75-10DP 2P
SPD Type	10kA Surge Protector
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC61643-11	Class III
Max. continuous operating a.c. voltage Uc	75V
Nominal discharge current (8/20us) In	5kA
Max. discharge current (8/20us) Imax	10kA
Combined impulse Uoc	10kV
Voltage protection level Up	≤500V
Response time tA	≤25ns
Operating state/fault indication	green/red
Remote Alarm Function	Optional
Cross-section area (Min.)	2.5mm²
Cross-section area (Max.)	16mm²
For mounting on	35mm Din rail
Relative Humidity	≤95%RH
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃

Dimension:

10kA Power Lightning Surge Protection Devices SPD 75V 2P Thermal Plastic 0

Our Advantages:

• More than 17 years specialized.
• Five series products, more than 160 items.
• ISO, CB, TUV & CE certificated.

Company Information:

Britec was established in 2003, is mainly specialized in surge protective device (SPD) with more than 17 years experiences. We are providing high quality products with very competitive price, prompt delivery and excellent service. We can also provide supports for large projects. OEM and ODM are acceptable.

Packing & Delivery:

Packing	export carton, or as request
Payment Term	30% before production, 70% before shipping.
Delivery Time	20 days
Others	Can be change by customers requirements
