Power Surge Protection Device
>

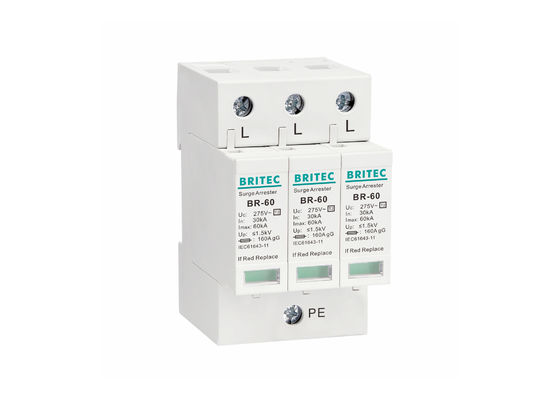

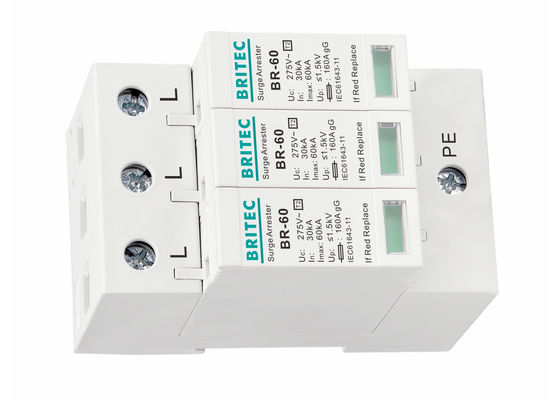

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-60 275 3p
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Model Number:
BR-60 275 3p
Item Name:
Surge Protector
Material:
Thermal Plastic
Pole Number:
3P
Protection:
IP20
Tu:
-40℃-80℃
Uc:
275V
In:
30kA
Imax:
60kA
Up:
≤1.5kV
Usage:
Low Voltage
Highlight:

High Light

Highlight:

lightning protection device

,

lightning surge protector

Trading Information
Minimum Order Quantity:
100 Piece/Pieces
Packaging Details:
EXPORT PACKING
Delivery Time:
Shipped in 15 days after payment
Payment Terms:
L/C, D/A, T/T, Western Union
Supply Ability:
50000 Piece/Pieces Month
Product Description

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device



3 Pole SPD 275V Power Surge Protector Features:

Protection class: Type 2, Class II.
Pole number: 3P.
Comply with IEC standards.
Green window will change when fault.
High performance varistor with thermal disconnection tripping device.
Plug-in module/base designs facilitate replacement of a failed module without the need to remove system wiring etc.
Designed to protect 3 phase TN-C systems.



3 Pole SPD 275V Power Surge Protector Technology characteristic:



  BR-60 275 3P
Max. continuous operating a.c. voltage                           Uc 275V
Nominal discharge current (8/20us)                                  In 30kA
Max. discharge current (8/20us)                                   Imax 60kA
Voltage protection level                                                    Up ≤1.5kV
Response time                                                                  tA ≤25ns
Max. backup fuse 200A
Operating temperature range                                           Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                 Thermal plastic UL94-V0
Dimension 3mods
Test standards IEC 61643-1



Dimension:



3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device 0



3 Pole SPD 275V Power Surge Protector Application:



Protecting low-voltage consumers' installations against indirect lightning discharges.
Used to guard sensitive equipment from voltage spike.


Our Services:



Sample is available for your evalution. The delivery time for sample is 7 days.
Offer detailed technique datasheet and installation diagram.
2 year quality warranty, perfect after-sell service.


About us:

Quality is for the sake of our first consideration, we have plenty of various SPD, and our workers work in our factory over 17 years, we are professional in manufacturing various surge protection devices, including the power and signal type.

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device 1

Our certification:

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device 2

FAQ:


Q1: Are you trading company or manufacturer?

  A: We are factory.



Q2: How long is your delivery time?

  A: Generally it is within 5 days if the goods are in stock, or it is less than 30 days if the goods are not in stock, it is according to quantity.



Q3: Do you provide samples?

  A: Yes, we could offer the sample.



Q4: What is your terms of payment?

  A: 30% T/T in advance, balance before shippment.
