275V AC Surge Protector 20kA Electrical Lightning Protective Device

Name: 275V AC Surge Protector 20kA Electrical Lightning Protective Device
Brand: Britec Electric Co., Ltd.
SKU: BR-20 275 3+1
Price: 3.50 USD
Availability: InStock

All Products

Surge Protection Device
(68)

Type 1 Surge Protection Device
(112)

Type 2 Surge Protection Device
(159)

Surge Protective Device Type 3
(29)

PV Surge Arrester
(43)

T1+T2 Surge Arrester B+C
(53)

Power Surge Protection Device
(66)

DC Surge Protection Device
(48)

Data Surge Protector
(55)

LED Surge Protection Device
(36)

Ethernet Surge Protection Devices
(42)

Lightning Strike Counter
(6)

Surge Protector Box
(6)

Electric Connection Box
(13)

Others
(18)

Best Products

40ka Power Surge Protection Device

Certification

I'm Online Chat Now

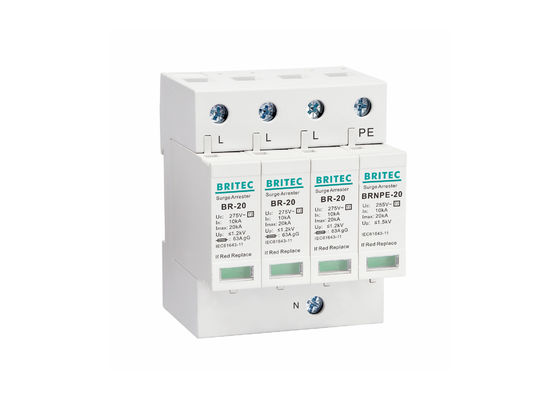

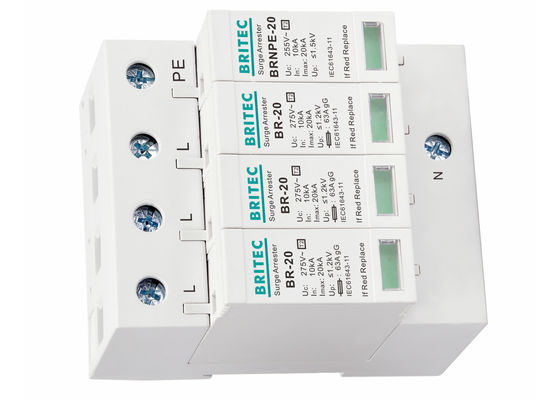

275V AC Surge Protector 20kA Electrical Lightning Protective Device

Large Image : 275V AC Surge Protector 20kA Electrical Lightning Protective Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-20 275 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

275V AC Surge Protector 20kA Electrical Lightning Protective Device

Description

Item Name:	Surge Protector	Material:	Thermal Plastic
Pole Number:	3P+NPE	Protection:	IP20
Tu:	-40℃-80℃	UC:	275V
In:	10kA	Imax:	20kA
Usage:	Low Voltage	Standard:	IEC61643-1
Keyword:	Lightning Protection
Highlight:	lightning protection device , lightning surge protector

Factory Supply 275V Surge Protector 20kA Electrical Lightning Protective Device

275V AC Surge Protector Features:

• Designed according to IEC 61643-1.

• Three-phase protection for TT and TN-S system.

• Pluggable module, easy for installation and maintenance.

• Quick response.

• Green window will change when fault.

• Remote alarm control: optional.

275V AC Surge Protector Technology characteristic:

	BR-20 275 3+1
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.2kV
Max. discharge current (8/20us) Imax	20kA
Nominal discharge current (8/20us) In	10kA
Response time tA	≤25ns
Degree of protection	IP20
Operating state / fault indication	green / red
Remote signal function	Optional
Remarks	Other Uc can be customized

Dimension:

275V AC Surge Protector Application:

• Protecting low voltage equipment from surge damages.

• Suitable for AC 50/60Hz, it protect to indirect and direct lightning effect or other transient over voltage.

• Applied in modular SPD Class II (Class C) for TT and TN-S power supply system.

Certification:

Full range of SPD products which has CE, CB, TUV certification. The company implements ISO9001 quality mangement system.

Company Information:

Established in 2003, Britec has over 17 years history of SPD manufactory experience, now as a professional and experienced surge protector factory, we could provide you competitive price with super quality products and satisfied service. There are 4 main kinds of SPD products produced, ie: AC Power Surge Protector, DC (solar) surge protector, Signal Surge Protector and LED Surge Protector.

Workshop:

Laboratory:

Shipping:

We ship out the goods by Express, by Air or by Sea.

Payment:

• Our trade term: EXW, FOB, CIF.

• Payment term: T/T in advance, L/C, Paypal etc.

275V AC Surge Protector 20kA Electrical Lightning Protective Device 6

FAQ:

Q1: Do you have OEM/ODM service? Can I have my own logo on the surge protection?
A1: OEM/ODM is available. For logo, we can print your logo on the label.

Q2: How does your factory do related quality control?
A2: Quality is top priority. Firstly, we will control the raw material; secondly, every worker does his job on the production line to ensure the professional; lastly, all products will be full tested well before packing.

Q3: What is the warranty of your products?
A3: The warranty is 2 years.

Q4: Which payment terms do you offer?
A4: T/T, Paypal etc.
