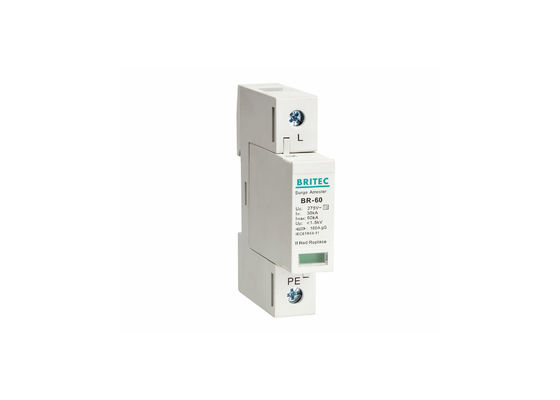

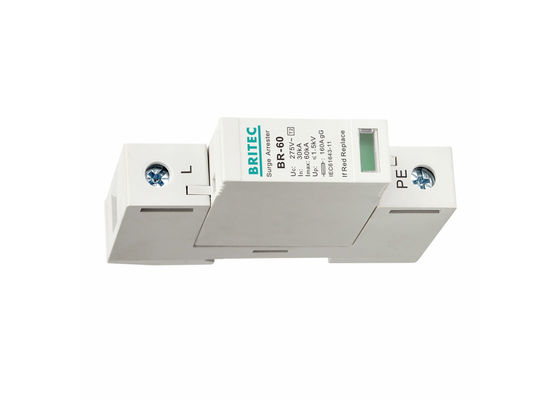

Name: Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v
Brand: BRITEC
SKU: BR-60 275 1P
Rating: 4.9 (116 reviews)

Home Products Power Surge Protection Device

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-60 275 1P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Type:	Type 2
Material:	Thermal Plastic	Type Item:	Lightning Protection
Color:	White	Uc:	275v
In:	30kA	Usage:	Low Voltage
Delivery Time:	20 Days	Standard:	IEC 61643-1
Highlight:	lightning protection device , lightning surge protector

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v

Class II Home AC 1p Lightning Protection Feature:

• Indoor fixed installation, voltage limited type.

• It adopts 35mm standard rail.

• The response time in the 25 nanosecond.

• When the SPD works normally, the visible window displays green, and when it fails, it displays red.

Class II Home AC 1p Lightning Protection Technology characteristic:

	BR-60 275 1P
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤1.5kV
Max. backup fuse	200A
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

Class II Home AC 1p Lightning Protection Application:

Used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

Workshop:

Certifications:

Shipping:

FAQ:

Q1. What advantages do you have?

A1. We are the direct Manufacturer in Wenzhou China, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. Could you print our own logo?

A2. Yes, our company are available for Retail & Wholesale & OEM & ODM.

Q3. How long is the quality guarantee?
A3. 2 years warranty, our products are 100% inspection.
