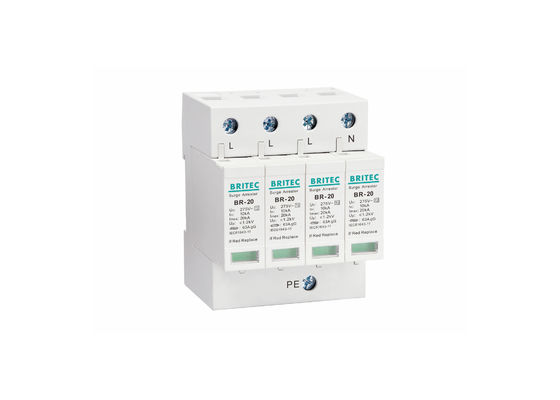

AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection

AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection
AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection

Large Image :  AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-20 275 4p
Document: BR-20 4P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

AC Type 2 Three Phase Surge Protector with 20kA Discharge Current and Pluggable Module for Lightning Protection

Description
Hs Code: 8536300000 Technology: MOV
Type Item: AC Power SPD Mounting On: 35mm Din Rail
Pole No: 4P Customized Service: Support
Item Name: Surge Protector System: Low Voltage
Function: Lighting Protection Safety Standard: IEC61643-1
Highlight:

lightning surge protector

,

power surge arrester

AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD
Product Features
  • Class C SPD
  • Pluggable replacement module
  • Designed according to IEC 61643-1
  • Failure detection indicator
  • Standard modular installation
  • Large discharge current (max 20kA (8/20μs))
  • Remote alarm mode: Optional
Technical Characteristics
Model BR-20 275 4P
Max. continuous operating a.c. voltage Uc 275V
Nominal discharge current (8/20us) In 10kA
Max. discharge current (8/20us) Imax 20kA
Voltage protection level Up ≤1.2kV
Response time tA ≤25ns
Max. backup fuse 63A
Operating temperature range Tu -40℃--80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Dimension 4 mods
Test standards IEC61643-1
Dimensions
AC Type 2 Three Phase Lightning Proof Surge Protector dimensional diagram
Applications
  • For use in AC power supply systems
  • Provide protection against surge current resulted from direct or indirect lightning strike or similar surge voltage
  • Applied in modular SPD Class II (Class C) for TN-S power supply system
Certification
Product certification and compliance documentation
Shipping

The mode of transportation is selected according to the number of products and customer needs. Express, sea or air.

Shipping and logistics information
Company Introduction

Wenzhou Britec Electric Co.,Ltd. is a professional surge protector manufacturer in China. Our company is a professional manufacturer of AC (DC) SPD. We have many years of experience, such as DC surge protection, AC surge protection, data surge protection, LED surge protective and more to meet your different needs.

Wenzhou Britec Electric Company facility and operations
Frequently Asked Questions
Q1. What's the payment term?
A. We accept T/T, PAYPAL etc.
Q2. What is the standard of package?
A. Export standard package or special package with requirement.
Q3. Do you accept OEM business?
A. We accept OEM with your authorization.
Q4. Which market do you already sell?
A. We already ship to many Europe, South America, African countries, Middle East, Southeast Asia etc.
Q5. What kind of certificate you have?
A. We have CE, CB, TUV, ISO90001 etc.
