| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR-12.5M 320 2P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protector | Place Of Origin: | Zhejiang, China (Mainland) |
|---|---|---|---|
| Brand Name: | BRITEC | Model Numbers: | BR-12.5M 320 2P |
| Safety Standard: | IEC61643-1 | Fuse: | 160A |
| Color: | White | Uc: | 320v |
| Iimp: | 12.5kA | Usage: | Low Voltage |
| Highlight: | lightning protection device,power surge arrester |
||

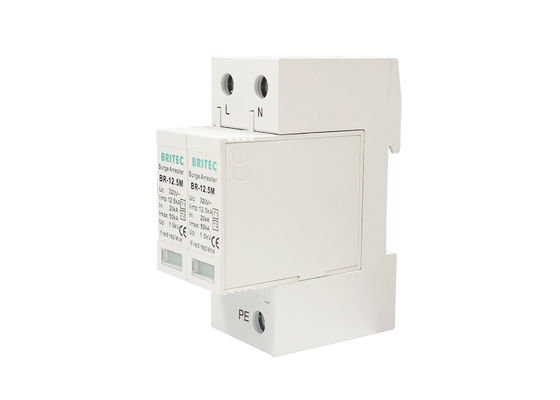

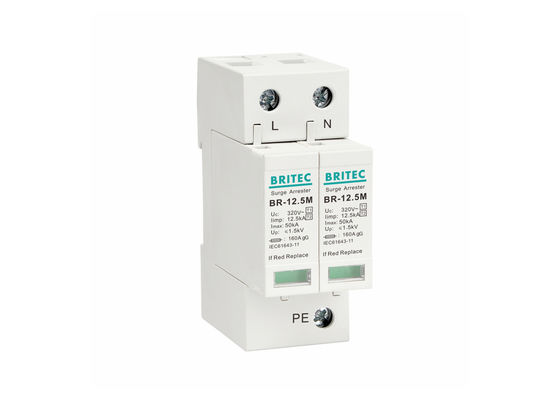

320V Surge Protector Power Surge Lightning Arrester 2p SPD AC Surge Arrester
320V Surge Protector Power Surge Lightning Arrester Feature:
320V Surge Protector Power Surge Lightning Arrester Technology characteristic:
| BR-12.5M 320 2P | |
| No. of poles | 2P |
| Power supply system | TN system |
| SPD classification according to IEC61643-11 | Class I + Class II |
| Nominal voltage Un | 220V |
| Max. continuous operating a.c. voltage Uc | 320V |
| Voltage protection level Up | ≤1.5kV |
| Max. discharge current (8/20us) Imax | 50kA |
| Nominal discharge current (8/20us) In | 20kA |
| Lightning impulse current (10/350us) Iimp | 12.5kA |
| Operating state / fault indication | green / red |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Relative humidity | On condition that room temperature 30% to 90% |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
| For mounting on | 35mm Din rail |
| Test grade | IEC61643-1 |
Dimension:
Working Conditions:
• Ambient air temperature: -40℃~+85℃, the highest monthly mean temperature should not exceed +35℃.
• Altitude for installing place should not exceed 2000m.
• Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 95%, air relative humidity of 85% or less.
Installation:
Install rail with Standard DIN Rail 35mm(EN50022/DIN46277-3), shall not exceed 5 degrees of vertical inclination.
Why choose us:
• We are leading manufacturer in surge protective device for more than 17 years’ experience.
• Rich experience in Global market, export to more than 50 countries.
• 100% QC inspection before shipment.
• Keep research and development the latest technology.
• Reply within 24 hours.
• After sale service: Professional technical support.
• Customized design: We can produce according to your request.
