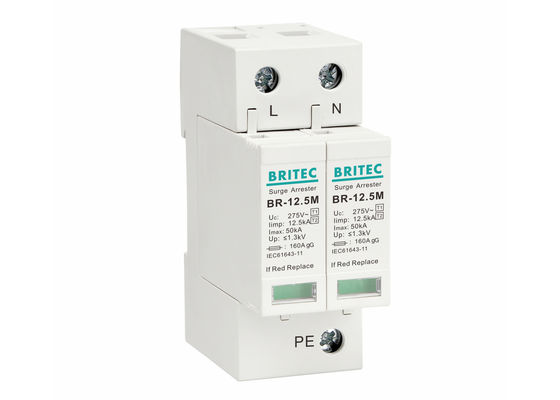

320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection

320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection
320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection 320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection

Large Image :  320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-12.5M 320 2P
Document: BR-12.5M 2P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

320V Surge Protector Lightning Arrester 2P DIN Rail Mount SPD for Lightning Protection

Description
Maximum Continuous Voltage: 320V Indicator: Green/red
Poles Number: 2P Mounting Type: DIN Rail Mount
Temperature Range: -40℃~+80℃ Function: Lighting Protection
Net Weight: 0.25Kg Protection Mode: L-PE, N-PE
Type Item: BR-12.5M 2P Voltage Protection Level: <1.5KV
Highlight:

lightning protection device

,

power surge arrester

320V Surge Protector Power Surge Lightning Arrester 2p SPD AC Long Life
Product Features
  • Indoor fixed installation, voltage limited type
  • Designed according to IEC 61643-1
  • Small volume, high discharge capacity, pluggable
  • Quick response
  • Visual status indicator: green for normal operation, red for fault
  • Optional remote signaling monitoring interface
Technical Specifications
Parameter Specification
Model BR-12.5M 320 2P
Number of poles 2P
Power supply system TN system
SPD classification (IEC61643-11) Class I + Class II
Nominal voltage (Un) 220V
Max. continuous operating voltage (Uc) 320V
Voltage protection level (Up) ≤1.5kV
Max. discharge current (8/20μs) 60kA
Nominal discharge current (8/20μs) 25kA
Lightning impulse current (10/350μs) 12.5kA
Operating state / fault indication Green / red
Response time (tA) ≤25ns
Operating temperature range -40℃ to +80℃
Relative humidity 30% to 90% at room temperature
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Mounting 35mm DIN rail
Test grade IEC61643-1
Dimensions
320V Surge Protector dimensions diagram
Applications
Protecting low voltage equipment from surge damages. Applied in pluggable SPD Class I+II (Class B+C) for TN power supply system.
Working Conditions
  • Ambient air temperature: -40℃ to +85℃ (highest monthly mean temperature should not exceed +35℃)
  • Installation altitude should not exceed 2000m
  • Atmospheric relative humidity: 50% maximum at +40℃, maximum humidity 95%, typically 85% or less
Installation
Install on standard 35mm DIN rail (EN50022/DIN46277-3), shall not exceed 5 degrees of vertical inclination.
Certification
Product certification and standards compliance
Manufacturing Facility
Surge protector manufacturing workshop
Shipping
Product shipping and packaging
Why Choose Us
  • Leading manufacturer with over 22 years of experience in surge protective devices
  • Rich global market experience, exporting to more than 50 countries
  • 100% quality control inspection before shipment
  • Continuous research and development of latest technologies
  • 24-hour response time for inquiries
  • Professional technical support and after-sales service
  • Customized design and production according to customer requirements
