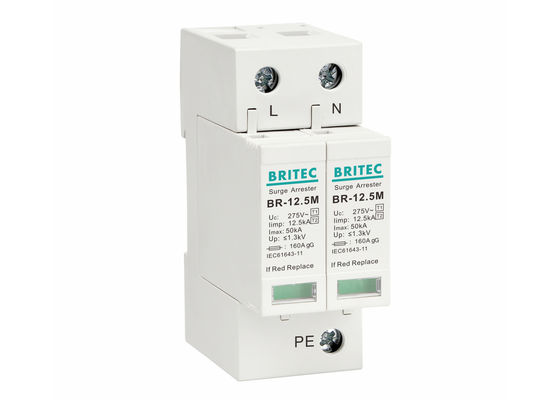

Din Rail Pluggable Surge Protection Device Class I+II with 12.5kA Lightning Protection

Large Image : Din Rail Pluggable Surge Protection Device Class I+II with 12.5kA Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE
Model Number:	BR-12.5M 275 2P
Document:	BR-12.5M 2P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

Din Rail Pluggable Surge Protection Device Class I+II with 12.5kA Lightning Protection

Description

Maximum Continuous Voltage:	275V	Imax:	60kA
Material:	Thermoplastic	Indicator:	Green/red
Voltage Rating:	230/440V AC	Response Time:	< 25 Nanosecond
Safety Standards:	IEC61643-1	Function:	Lighting Protection
Protection Modes:	L-PE/N-PE	Pole No:	2 Poles
Highlight:	lightning surge protector , power surge arrester

Din Rail Pluggable Power Surge Protection Device Class I+II Low Voltage Surge Protective

Product Features

Designed according to IEC and GB standards
Plug design for easy maintenance
High security performance
Clear status indication: green light indicates normal operation, red light indicates replacement needed

Technical Specifications

Parameter	BR-12.5M 275 2P
No. of poles	2P
Power supply system	TN system
SPD classification according to IEC61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Max. discharge current (8/20us) Imax	60kA
Nominal discharge current (8/20us) In	25kA
Lightning impulse current (10/350us) Iimp	12.5kA
Operating state / fault indication	green / red
Response time tA	≤25ns
Operating temperature range Tu	-40℃--80℃
Relative humidity	30% to 90% at room temperature
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
For mounting on	35mm Din rail
Test grade	IEC61643-1 standards

Dimensions

Applications

Applicable to low-voltage distribution system protection and applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B+C lightning strike to power supply system or disoperation.

Certification

Shipping Options

For smaller orders, we ship via express delivery services including TNT, DHL, UPS or EMS. For larger orders, we recommend air or sea shipping through your nominated forwarder agent. Our long-term cooperated agent is also available.

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally about 30 days, depending on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we provide samples, but they are not free.
