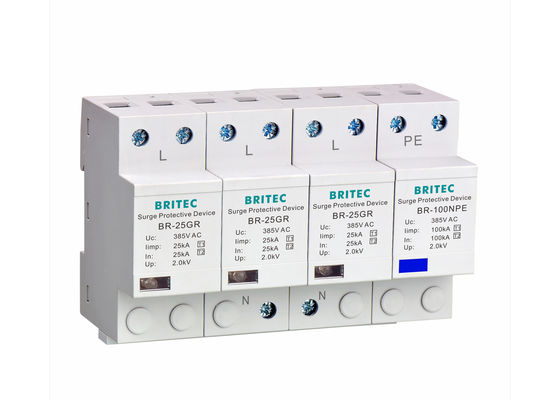

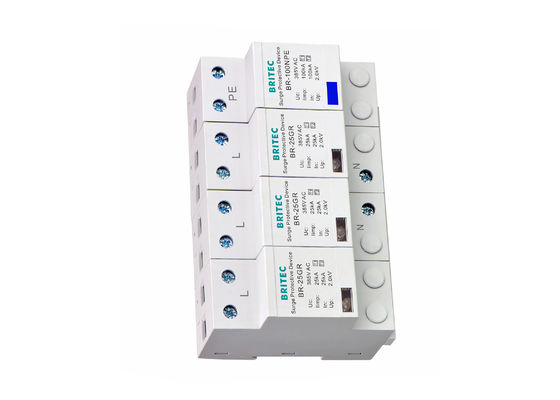

Type 1 Lightning Surge Arrester Module Surge Arrester SPD Surge Protective

Large Image : Type 1 Lightning Surge Arrester Module Surge Arrester SPD Surge Protective

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-25GR 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Type 1 Lightning Surge Arrester Module Surge Arrester SPD Surge Protective

Description

Item Name:	Surge Protective	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Model Numbers:	BR-25GR 3+1
Rated Voltage:	AC 385V	Standard:	IEC61643-1
Weight (g):	1000	Color:	White, Grey
Class:	Type 1	Iimp:	25kA
Keyword:	Lightning Protection
Highlight:	lightning protection device , lightning surge protector

Type 1 Surge Diverter Module Surge Arrester SPD Surge Protective

Type 1 Lightning Surge Arrester Module Surge Arrester Features:

• Surge arrestors.

• Working voltage: 220V/255V/275V/320V/385V/420V/440V.

• High arresting capacity up to 25 kA (10/350μs) per pole.

• Normal discharge current (8/20us) In: 25kA / 50kA.

• Max. discharge current (8/20us) Imax: 100kA.

• Labeled connections.

• Protection class: B.

• Composite type: 3P+NPE.

• Response time: 100ns.

• Installation: standard rail 35mm.

• Suitable for TN-S and TT power supply system of AC50/60Hz.

• According to IEC61643-1.

Type 1 Lightning Surge Arrester Module Surge Arrester Technology characteristic:

	BR-25GR 3+1
Nominal voltage Un	230V / 400V AC
Max. continuous operating a.c. voltage Uc	385V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp	25kA / 50kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 50kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax	100kA
Voltage protection level (L-N / N-PE) Up	≤2.0kV
Response time tA	≤100ns
Max. backup fuse	315A gG
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

Dimension:

Type 1 Lightning Surge Arrester Module Surge Arrester SPD Surge Protective 0

Type 1 Lightning Surge Arrester Module Surge Arrester Application:

• Usable in systems with lightning protection class 1+2.

• For installation at LPZ 0A-1 or higher, protecting low voltage equipment from surge damage.

• Applied in modular SPD Class I+II (Class B+C) for three-phase TN-S (TNC-S) power supply system.

Certificate:

Production line:

Laboratory equipment:

Shipping:

FAQ:

Q1: What is the MOQ?
A1: 100pcs.

Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams, we can customize products according to customers’ drawing or requirements.

Q3: Can we put/show our own Logo on your products?
A3: Yes.

Q4: What is the Terms of Payment?
A4: T/T, PAYPAL etc.

Q5: How is the delivery time?
A5: It depends your order quantity and it normally takes 20 days.
