60kA AC275V DIN Rail Mount Surge Lightning Arrestor SPD for Electrical Power Protection

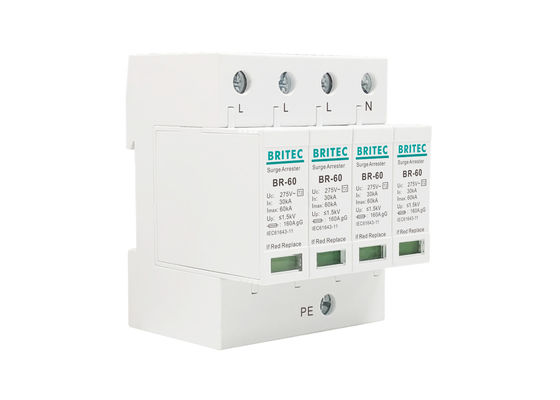

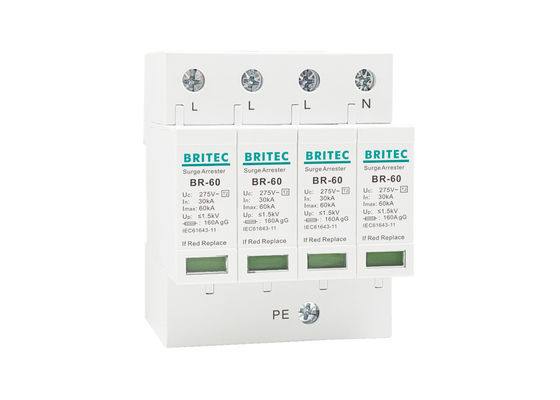

Large Image : 60kA AC275V DIN Rail Mount Surge Lightning Arrestor SPD for Electrical Power Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-60 4P
Document:	BR-60 4P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

60kA AC275V DIN Rail Mount Surge Lightning Arrestor SPD for Electrical Power Protection

Description

Indicator:	Green / Red	Nominal Discharge Current:	30KA
Material:	Thermoplastic UL94-V0	Maximum Continuous Voltage:	275V
Voltage Rating:	230/440V AC	Connection Type:	DIN Rail Mount
Maximum Discharging Current:	60KA	Safety Standards:	IEC61643-1
Item Name:	Lightning Arrestor	Keyword:	Lightning Protection
Highlight:	lightning surge protector , power surge arrester

4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection

Product Features

Visual status display
Available with optional remote signaling
Simple standard rail mounting
Usable in TN-S systems
Selection of high-quality varistors, stable and reliable performance
High lightning current capability
Energy saving, environmental protection, easy installation, no special maintenance

Technical Specifications

Parameter	Specification
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Nominal Voltage Un	220/230/400Vac
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤1.2kV
Response time tA	≤25ns
Power supply system	TN-S system
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Operating temperature range Tu	-40℃ to +80℃
Degree of protection	IP20
Remote Signalling	Optional (Depends on customer requirements)

Dimensions

Applications

• For buildings with lightning protection

• Widely used in mobile communication base stations, telecommunications rooms, civil aviation, and other power systems

• Such as power distribution stations, power distribution rooms, power distribution cabinets, switch boxes and other various equipment that is important and vulnerable to lightning strikes
