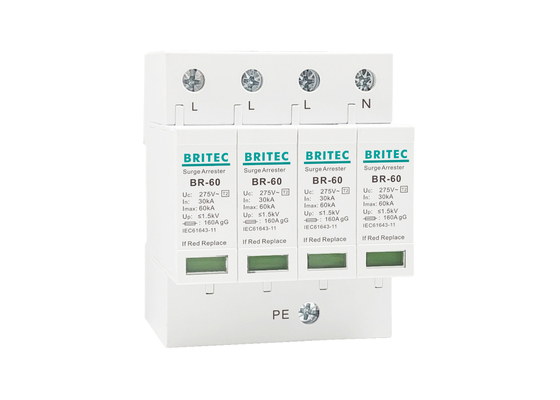

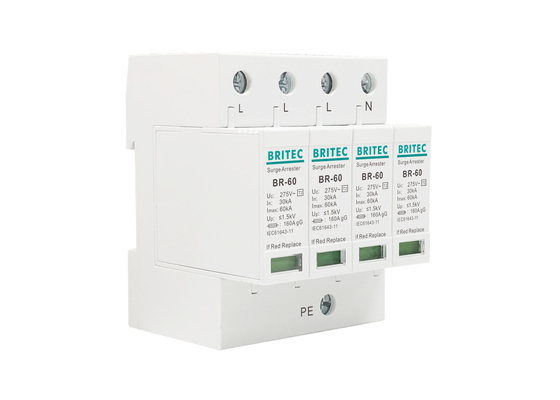

4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection

4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection

  • 4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection
  • 4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection
4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR275-60 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Arrestor Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Model Numbers: BR275-60 4p
Uc: AC 275V Safety Standard: IEC61643-1
Pole Number: 4P In: 30kA
Imax: 60kA Class: Class II
High Light:

lightning surge protector

,

power surge arrester

4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection



4P Surge Lightning Arrestor 60kA SPD Features:



• Visual status display.

Available with optional remote signaling.
Simple standard rail mounting.
Usable in TN-S systems.
Selection of high-quality varistors, stable and reliable performance.
High lightning current capability.
Energy saving, environmental protection, easy installation, no special maintenance.


4P Surge Lightning Arrestor 60kA SPD Technology characteristic:



  BR275 60 4
SPD classification according to EN61643-11 Type 2
SPD classification according to IEC61643-11 Class II
Nominal Voltage                                                             Un 220/230/400Vac
Max. continuous operating a.c. voltage                          Uc 275V
Nominal discharge current (8/20us)                                 In 30kA
Max. discharge current (8/20us)                                 Imax 60kA
Voltage protection level                                                  Up ≤1.2kV
Response time                                                                tA ≤25ns
Power supply system TN-S system
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure materail Thermal plastic UL94-V0
Operating temperature range                                         Tu -40℃—80℃
Degree of protection IP20
Remote Signalling        Optional (Depends customer require)



Dimension:



4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection 0



4P Surge Lightning Arrestor 60kA SPD Application:


• For buildings with lightning protection.

Widely used in mobile communication base stations, Telecommunications room, civil aviation, and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets, switch box and other various equipment that is important and vulnerable to lightning strikes.



Shipping & Payment:



4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection 14P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection 2



About us:



Wenzhou Britec Electric Co.,Ltd. established since 2003, is one professional SPD manufacturer in Zhejiang Province, China. We are located in Yueqing city. We specialize in design,manufacture and sell all variety of high quality surge protection products. Our specialty is to provide the customized products, and OEM/ODM products, etc. Here we are sincerely hope to establish one good long-term business relationship with customer through this opportunity, based on equal, mutual beneficial and win-win business from now till the future.



4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection 3



Certification:



4P Surge Lightning Arrestor 60kA SPD AC275V Electrical Power Protection 4



FAQ:



1.Q: Are you the factory or trading company?

   A: We are factory who was founded in 2003.



2.Q: What's your main products?
   A: All kinds for surger protection products.



3.Q: Can I get some samples?
   A: Yes, sample order is available for quality check and market test.



4.Q: What’s your payment terms?
   A: We usually accept T/T, Paypal etc.



5.Q: How can you control your quality?
   A: For each production processing, we have complete QC system. After production, all the goods will be tested according to related standards.
