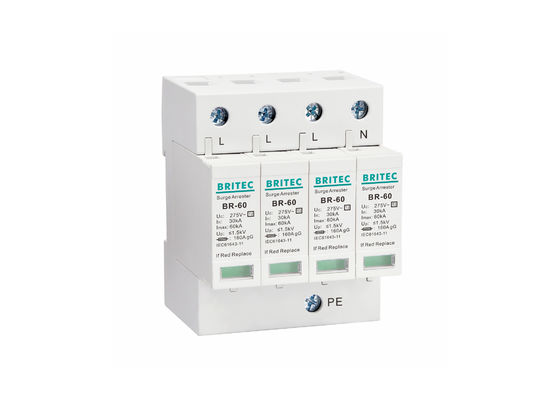

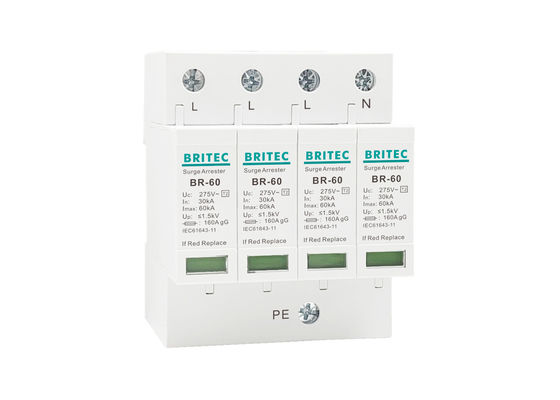

320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection

320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection
320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection 320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection

Large Image :  320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-60 4P
Document: BR-60 4P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

320V 60KA 4P Class II Power Surge Protection Device SPD for Lightning Protection

Description
Color: Grey Voltage: 150V/275V/320V/385V
Material: Thermoplastic UL94-V0 Protection Mode: L-PE,N-PE
Connections: TN-S Operating Temperature Range: -40°C To 80°C
Product Name: Power Surge Protection Device Safety Standards: IEC61643-1
For Mounting On: 35mm Din Rail Keyword: Lightning Protection
Highlight:

lightning protection device

,

lightning surge protector

320V Voltage Limiter SPD Power Surge Protection Device 4P Class II 60KA
Product Features
  • Excellent discharge capacity
  • Visual operation display
  • Energy-rich voltage dependent resistor with nanosecond-level response speed
  • Convenient pull-and-insert modular design with removable failed module installation
Technical Specifications
Parameter BR-60 4P Specification
Max. continuous operating a.c. voltage (Uc) 320V
Nominal discharge current (8/20μs) (In) 30kA
Max. discharge current (8/20μs) (Imax) 60kA
Voltage protection level (Up) ≤1.8kV
Response time (tA) ≤25ns
Degree of protection IP20
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 160A gG
Operating temperature range (Tu) -40℃ to +80℃
Operating state/fault indication Green/Red
Enclosure material Thermoplastic UL94-V0
MOQ 200pcs
Port of loading Ningbo/Shanghai
Function Lightning protection
For mounting on 35mm Din rail
Note Other maximum continuous working voltage Uc can be customized
Dimensions
320V Voltage Limiter SPD Power Surge Protection Device dimensional drawing
Applications

SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, and power frequency transient over-voltage impact damage.

Suitable for three-phase, TN-S power distribution systems.

Certifications
Product certification and compliance documentation
Shipping Information
Shipping and logistics information
Frequently Asked Questions
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipment.
Q2. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q3: Do you accept customized order?
A: Yes, we do.
Q4: What's the delivery time?
A: It usually takes 20 days after confirming payment, but specific time should be based on the order quantity.
Q5: Is sample available and free?
A: Sample is available, but it is not free. And the cost of sample will be refund after further order.
Q6: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24 hours.
