AC 385V Three Phase Power Surge Protection Device SPD Power Surge Arrester 25KA

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-25GR 3P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Arrester	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Model Numbers:	BR-25GR 3P
Uc:	385V	Safety Standard:	IEC61643-1
Pole Number:	3P	Iimp:	25kA
In:	25kA	Imax:	100kA
High Light:	lightning surge protector , power surge arrester

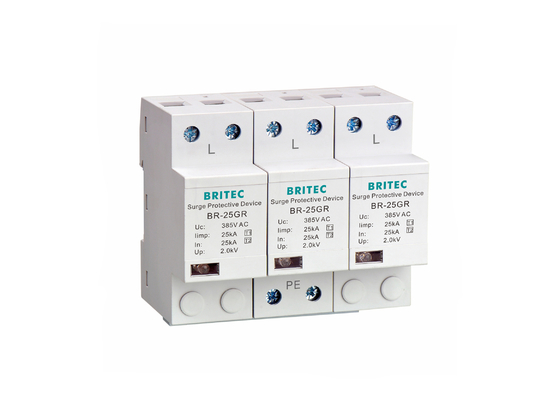

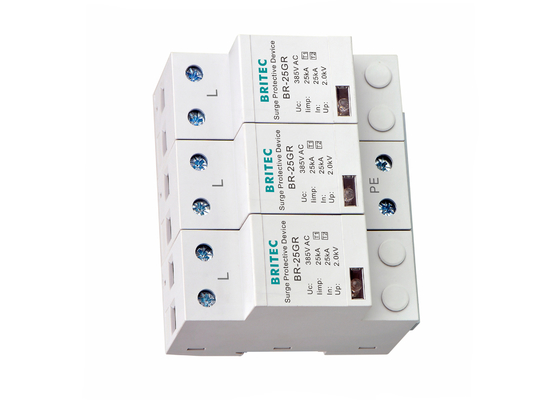

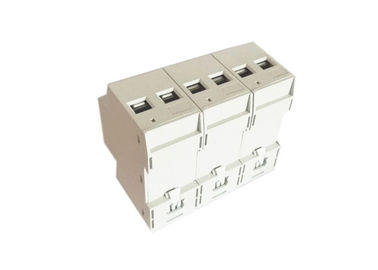

AC 385V Three Phase Power Surge Protector Device SPD Power Surge Arrester 25KA

AC 385V Three Phase Power Surge Protection Device SPD Features:

• Three-pole lightning current arrester.

• 10/350μs, 8/20μs sparkgap.

• Indicating window.

• Adopt hermetical GDT technology, high follow current extinguishing capability.

• Extremely low voltage protection level.

• Designed according to IEC 61643-1.

AC 385V Three Phase Power Surge Protection Device SPD Technology characteristic:

	BR-25GR 3P
Max. continuous operating a.c. voltage Uc	385V
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Max. discharge current (8/20us) Imax	100kA
Voltage protection level Up	≤2.0kV
Response time tA	≤100ns
Degree of protection	IP20
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Max. backup fuse	315A gL
Operating temperature range Tu	-40℃—80℃
Function	Inncoming line 1 Class protection
Note	Other maximum continuous working voltage Uc can be customized

Dimension:

AC 385V Three Phase Power Surge Protection Device SPD Application:

• Protecting low voltage equipment against lightning and surge damages.

• Applied in PSD Class I (Class B) for various power supply system.

• SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

Product Line:

AC 385V Three Phase Power Surge Protection Device SPD Power Surge Arrester 25KA 1

Certificate:

FAQ:

Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipment.

Q2. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.

Q3. Do you accept customized order?

A. Yes, we do.

Q4. What's the delievery time?

A. It usually takes 20 days after confirming payment, but specific time should be based on the order quantity.

Q5. Is sample available and free?

A. Sample is available, but it's not free. The cost of sample will be refund after further order.
