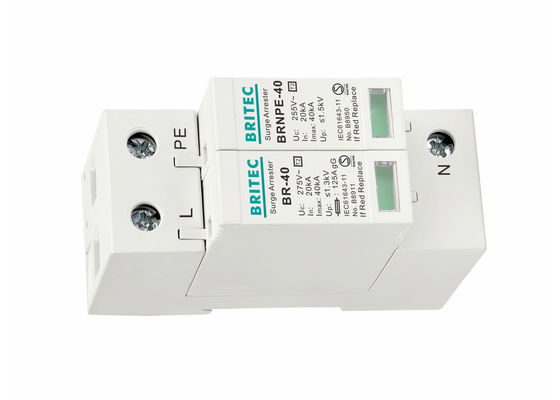

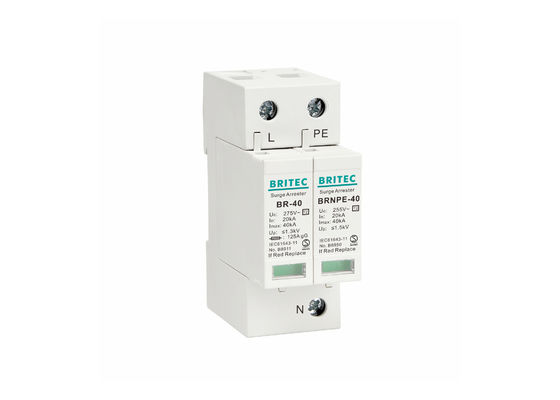

Plastic Single Phase Surge Protection Device with 40kA Maximum Discharge Current and Pluggable Modular DIN Rail Design IEC 61643-11 Certified

Large Image : Plastic Single Phase Surge Protection Device with 40kA Maximum Discharge Current and Pluggable Modular DIN Rail Design IEC 61643-11 Certified

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/S
Model Number:	BR-40 275 1+1
Document:	BR-40 1+1 old version.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Plastic Single Phase Surge Protection Device with 40kA Maximum Discharge Current and Pluggable Modular DIN Rail Design IEC 61643-11 Certified

Description

Test Standards:	IEC 61643-11 / EN61643-11	Mounting:	DIN Rail
Packaging Detail:	Carton Packaging	Rated Voltage:	230V/400V
Voltage Protection Level:	≤1.3kV	Relative Humidity:	≤95％
Phase:	Single Phase	Waveform:	8/20
Rated Frequency:	50/60Hz	Item Name:	Surge Protective Device
Type:	Ac Surge Protector	Keyword:	Lightning Protection
Highlight:	lightning surge arrester , 2 pole surge protector

Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector

Product Features

Class II / Type 2 lightning protective device
Consisting of a base part and MOV plug-in protection modules
Pole number: 1+1
The core parts are metal oxide varistor components with high discharge capacity
Low residual voltage and quick response
Reliable control thanks to Thermo Dynamic Control disconnector
With remote signaling contact for control device
Fault indication via red mark in the inspection window
Protection mode: L/N-PE

Technical Characteristics

Specification	BR-40 275 1+1
Item name	Surge Arrester
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Max continuous Operating a.c. voltage Uc	275V
Max. discharge current (8/20µs) Imax	40kA
Nominal discharge current (8/20µs) In	20kA
Voltage protection level Up	≤1.3kV
Follow current extinguishing capability a.c. lfi	100A rms
Max. backup fuse	125A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃--80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimensions

Applications

For using in the lightning protection zones concept at boundary 1-2
Protecting low-voltage consumers' installations against indirect lightning discharges
Surge arresters used to guard sensitive equipment from voltage spikes

Process Flow

Certification

Company Profile

Our factory is located in Yueqing city, Zhejiang province, a half hour's drive from our office, which specializes in export of SPDs. Having an independent mould workshop, we have developed various SPD products.

Frequently Asked Questions

Q1: Are you a lightning surge protectors factory or lightning arrester trading company?

A1: We are surge protection device manufacturer.

Q2: Is sample available and free?

A2: Sample is available, but the sample cost should be paid by you. The cost of sample will be refunded after further order.

Q3: How can I get some surge arrester samples?

A3: We are honored to offer you SPD samples, please contact our staff and leave detailed contact information, we promise to keep your information confidential.

Q4: Do you accept customized order?

A4: Yes, we do.

Q5: What's the delivery time?

A5: It usually takes 30 days after confirming payment, but specific time should be based on the order quantity.
