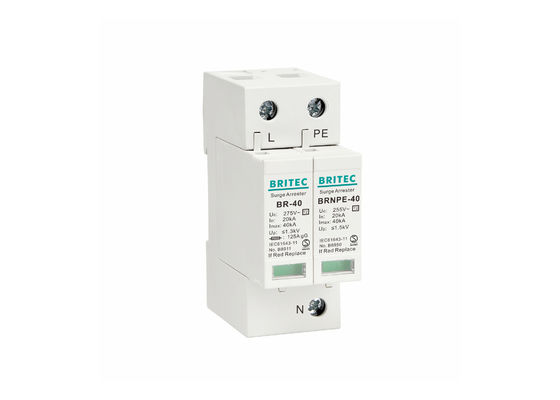

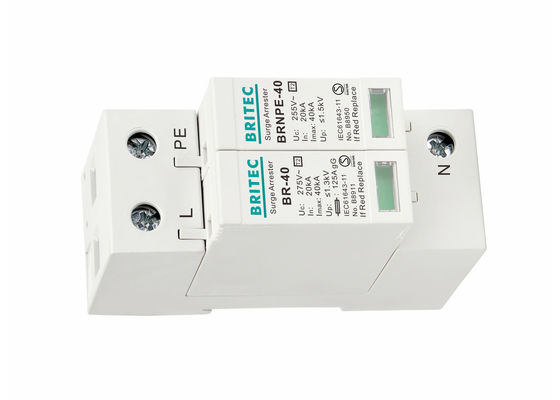

Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector

Name: Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR275-40 1+1
Price: 27.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR275-40 1+1

Detail Information

Place of Origin:

China

Brand Name:

BRITEC

Certification:

TUV

Model Number:

BR275-40 1+1

Item Name:

Surge Protective Device

Type:

Ac Surge Protector

Material:

Plastic

Pole Number:

1+1

Uc:

275V

In:

20kA

Imax:

40kA

Certificate:

TUV/CE/ROHS/ISO9001

Tu:

-40℃-80℃

Delivery Time:

Shipped In 20 Days After Payment

Highlight:

High Light

Highlight:

lightning surge arrester

2 pole surge protector

Trading Information

Minimum Order Quantity:

100 Piece/Pieces

Packaging Details:

EXPORT PACKING

Delivery Time:

Shipped in 15 days after payment

Payment Terms:

L/C, D/A, T/T, Western Union

Supply Ability:

50000 Piece/Pieces Month

Product Description

275V 1 Single Phase Type 2 White Surge Protective Device TUV Approved BR275-40 1+1

Plastic Single Phase Surge Protection Device Features:

- Class II / Type 2 lightning protective device.
- Consisting of a base part and MOV plug-in protection modules.
- Pole number: 1+1.

- The core parts are metal oxide vristor components with high discharge capacity.
- Low residual voltage and quick response.
- Reliable control thanks to Thermo Dynamic Control disconnector.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.
- Protection mode: L/N-PE.

Plastic Single Phase Surge Protection Device Technology characteristic:

Specification	BR275-40 1+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 2
SPD dassification according to IEC61643-11	Class II
Max continuous 0perating a.c. voltage Uc	275V
Max. discharge current (8/20µs) Imax	40kA
Norminal discharge current (8/20µs) In	20kA
Voltage protection level Up	≤1.3kV
Follow current extinguishing capability a.c. lifi	100A rms
Max. backup fuse	125A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94-V0

Dimension:

Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector 0

Plastic Single Phase Surge Protection Device Application:

- For using in the lightning protection zones concept at boundary 1-2.

- Protecting low-voltage consumers' installations against indirect lightning discharges.

- surge areeare used to guard sensitive equipments from voltage spike.

Process flow:

Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector 1

Certification:

Company profile:

Our factory is located in Yueqing city, Zhejiang province, a half's drive from our office, which is specialize in export of SPDs. Having a independent mould workshop, we have developed various SPD.

Plastic Single Phase Surge Protection Device IP 20 Type 2 Surge Protector 3

FAQ:

Q1: Are you a lightning surge protectors factory or lightning arrester trading company?

A2: We are surge protection device manufacturer.

Q2: Is sample available and free?

A2: Sample is avaible, but the sample cost should be pay by you. The cost of sample will be refund after further order.

Q3: How can I get some surge arrester samples?

A3: We are honored to offer you SPD samples, please contact our staff and leave detailed contact information, we promise to keep your information confidential.

Q4: Do you accept customized order?

A4: Yes, we do.

Q5: What's the delievery time?

A5: It usually takes 20days after confirming payment, but specific time should be based on the order quantity.
