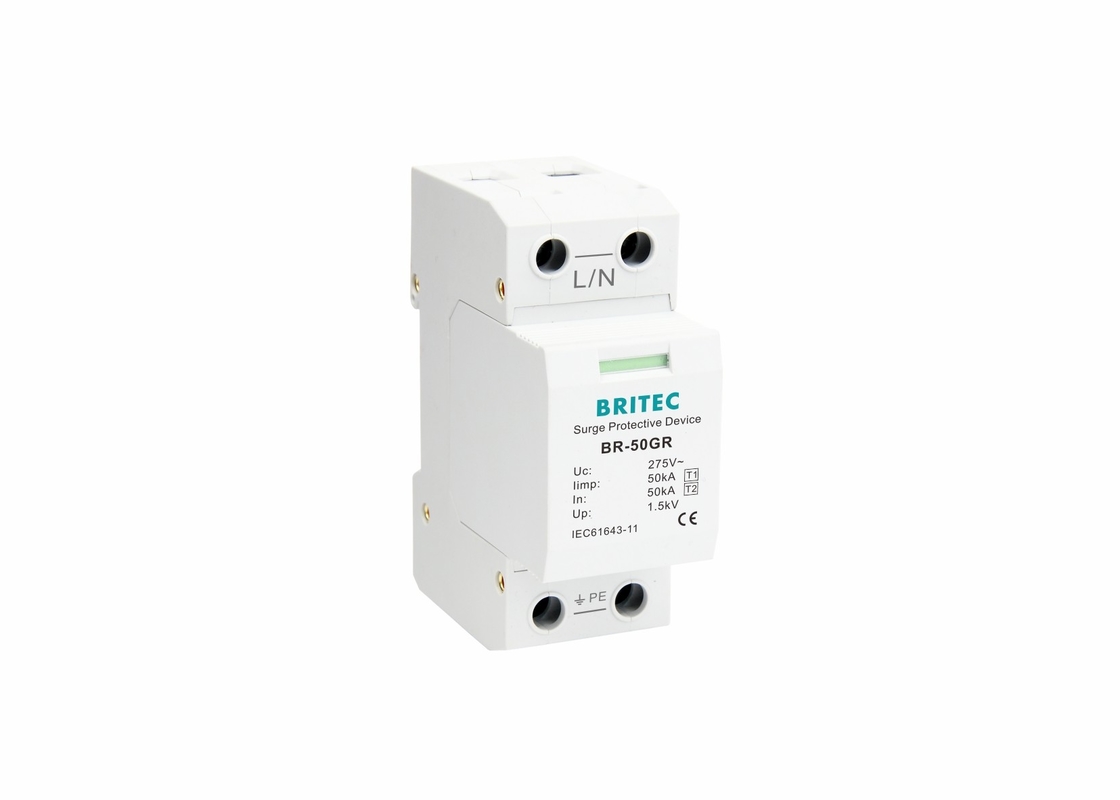

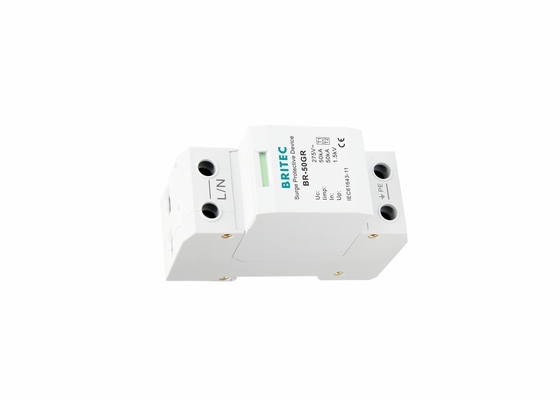

Name: Durable Commercial Type 1 Surge Protection Device For Consumer Installations
Brand: BRITEC
SKU: BR-50GR 1P
Rating: 4.7 (147 reviews)

Home Products Type 1 Surge Protection Device

Durable Commercial Type 1 Surge Protection Device For Consumer Installations

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 1P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protective Device	Type:	Ac Surge Protector
Material:	Plastic	Pole Number:	1P
Uc:	385V	Iimp:	50kA
Imax:	160kA	Up:	2.5kV
Tu:	-40℃-80℃	Certificate:	TUV/CE/ROHS/ISO9001
Highlight:	ac surge protection device , type 1 surge protector

50KA 1 Phase Type 1 Surge Arrester TUV approved BR-50GR 1P

Durable Commercial Type 1 Surge Protection Device Features:

• Class I 50kA surge arrester.

• Maximum discharge current (8/20μs) (Imax): 160kA.

• Maximum continuous operating voltage (Uc): 385V AC.

• Protection level up: ≤2.5kV.

• With indication window and remote control contacts.

• 35mm DIN-rail.

• Width of one pole: 36mm.

• In accordance with EN / IEC 61643.

Durable Commercial Type 1 Surge Protection Device Technology characteristic:

Specification	BR-50GR 1P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	385V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Max discharge current (8/20µs) Imax	160kA
Voltage protection level Up	≤2.5kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enlcosure material	Thermal plastic UL94-V0

Dimension:

Durable Commercial Type 1 Surge Protection Device For Consumer Installations 0

Durable Commercial Type 1 Surge Protection Device Application:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.

• Suitable as the first step of protection in incoming power supply panels and areas with high exposure to lightning strikes, fitted with an external lightning protection system.

• Widely used to industry and automation, commercial and residential installations, telecom & IT & data centers, water treatment, smart grid & LV metering and wind.

Durable Commercial Type 1 Surge Protection Device Advantage:

• Unique designing, patent technology.

• High discharge capacity.

• Low residual voltage.

• Fault signal contact.

• Status indicator.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Durable Commercial Type 1 Surge Protection Device Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.

• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.

Certificate:

About us:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Factory tour:

Production process:

FAQ:

Q1: Are samples available?
A: Of course. But it is not free. You can choose the samples directly from our stock.

Q2: What is the average production time?
A: Our average production time is around 20 days.

Q3: Can you offer packing designs as per customers' requests?
A: Of course. We can printed the package boxes as you required. If you need, we can send the popular designs for your reference.

Q4: Can you OEM or ODM?
A: Yes, the products can be made according to your request.
