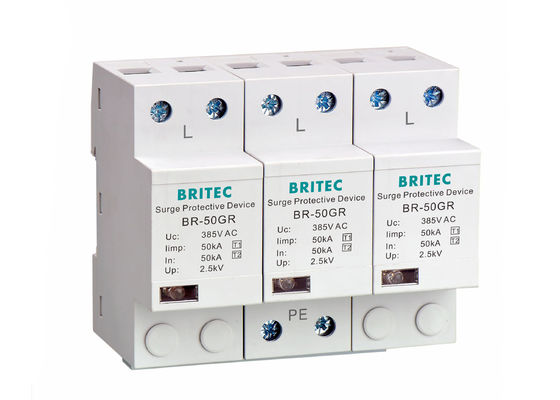

50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range

50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range

  • 50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range
  • 50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range
50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-50GR 275 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Type: Ac Surge Protector
Material: Plastic Place Of Origin: Zhejiang, China (Mainland)
Pole Number: 3P Iimp: 50kA
Imax: 160kA Certificate: TUV/CE/ROHS/ISO9001
Tu: -40℃-80℃ Application: Surge Protective Device Is Suitable For Three-phase TN-C System
Highlight:

industrial surge protection devices

,

ac surge protection device

50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range



50 Ka Surge Protection Devices Features:

• 3 poles 50kA Type 1 lightning arrester.
• limp: 50KA on 10/350 µs current impulse.
• Imax: 200kA/Phase (8/20μs waveform).
• With indication window and remote control contacts.
• 35mm DIN-rail.
• BR-50GR series are Type 1 surge protective devices designed to discharge high current surges without any damage to the back-up electrical equipment.
• It is suitable for TN-C system.


50 Ka Surge Protection Devices Technology characteristic:



Specification BR-50GR 3P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1 + Type 2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage                     Uc 275V
Lightning impulse current (10/350µs)                     limp 50kA
Norminal discharge current (8/20µs)                         In 50kA
Maximun discharge current (8/20µs)                    Imax 200kA
Voltage protection level                                            Up ≤1.8kV
Follow current extinguishing capability a.c.               lifi 25kA rms
Max. backup fuse 350A gG
Response time                                                          tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermal plastic UL94-V0



Dimension:



50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range 0



50 Ka Surge Protection Devices Application:



• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
• For protecting low-voltage consumer's installations against indirect lightning discharges.
• Protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting, and motors.

50 Ka Surge Protection Devices Advantage:

• Unique designing, patent technology.
• High discharge capacity.
• Low residual voltage.
• DIN rail mountable and ease of installation.
• Quick thermal response self-protected design.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.

50 Ka Surge Protection Devices Installation:

• Installed at the entrance point of the building, in the main distribution board of this installation.
• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are installed.
• Must install SPD strictly according to the wiring diagram provided.
• Better to under the guidance of professional electrician.
• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.

Shipping:

50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range 1

Company information:

Wenzhou Britec Electric Co., Ltd. is located in the Yueqing city. Britec is dedicated to development, manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed regional economy and friendly investment environment ensure Britec’s sustainable developments and continuous innovations. It is professional in producing SPD.

50 Ka Surge Protection Devices 3 Phase BR-50GR Below Zero 40℃-80℃ Range 2

FAQ:


Q1. Are you manufacturer or trading office?

  A: We are manufacturer in Wenzhou, with the ability to export by ourselves.



Q2: Do you support OEM or ODM?

  A: Yes, we support OEM & ODM.



Q3: How's your product markets?

  A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win us a good reputation.



Q4. How’s your warranty?

  A: All our products are 2-year warranted.
