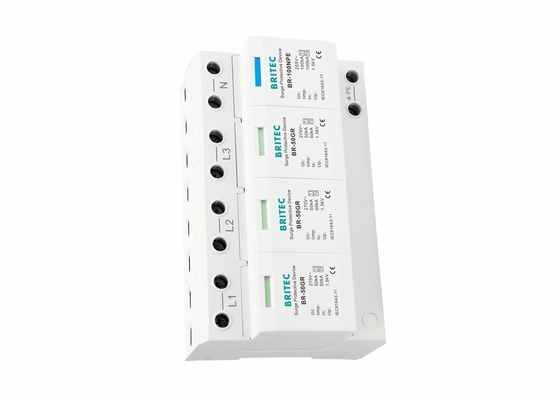

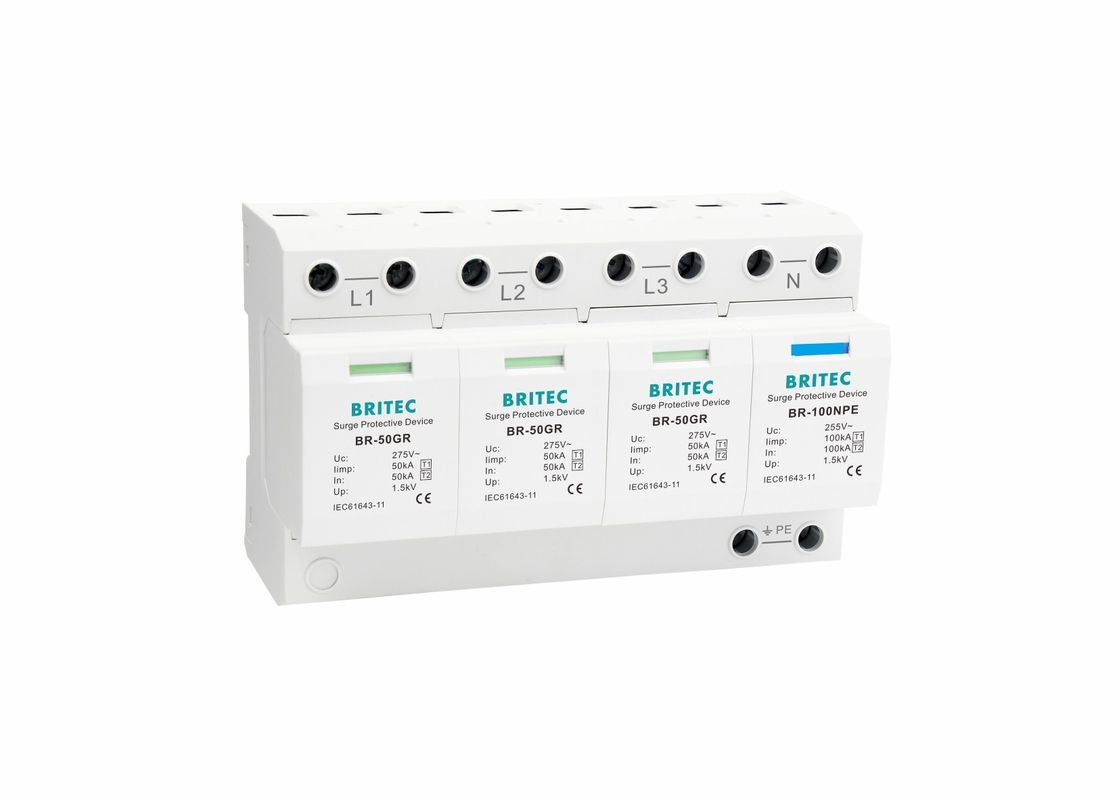

Ac Lighnting Protector Type 1 Surge Protection Device Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Surge Arrester	Type:	Ac Surge Protector
Material:	Plastic	Pole Number:	3+1
Uc:	275V	Iimp:	50kA
Enclosure:	Thermalplastic UL94-VO	Certificate:	TUV/CE/ROHS/ISO9001 Approved Standard
Tu:	-40℃-80℃	Application:	Surge Arrester Is Suitable For Three-phase TT And TN-S System
Highlight:	industrial surge protection devices , type 1 surge protector

50kA three phase Type 1 Surge Protection Device TUV certificated BR-50GR 3+1

Ac Lighting Type 1 Surge Protection Device Features:

• Combination arrestor, Type 1+2, 3P+NPE, with visual function display, for use in TN-S and TT system.

• Lightning current arresting capacity to 50 kA (10/350) per pole.

• Max backup fuse 315A gG.

• 35mm Din rail mountable.

• According to lightning protection zone concept according to IEC 61312-1.

• Shell protection grade IP20 flame retardant grade UL94 V0.

Ac Lighting Type 1 Surge Protection Device Technology characteristic:

Specification	BR-50GR 3+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Voltage protection level Up	1.8kV
Follow current extinguishing capability a.c. lifi	25kA rms
Max. backup fuse	315A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94-V0

Dimension:

BR25R 3+1 1+1.jpg

Ac Lighting Type 1 Surge Protection Device Application:

• Suitable for TT and TN-S system.

• Used in industrial systems and buildings with external lightning protection of Classes I to IV.

• For the protection of low voltage distribution systems against direct lightning strike into the overhead power supply line or external lightning protection system.

• Can be used in standard distributor housing.

Ac Lighting Type 1 Surge Protection Device Advantage:

• Competitively priced against other brands.

• High current.

• High speed action response time.

• With overheat protection.

• high reliability.

• Large flow capacity, low residual pressure.

• The structure is rigorous, the installation is convenient, and the maintenance is simple.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Ac Lighting Type 1 Surge Protection Device Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.

• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.
