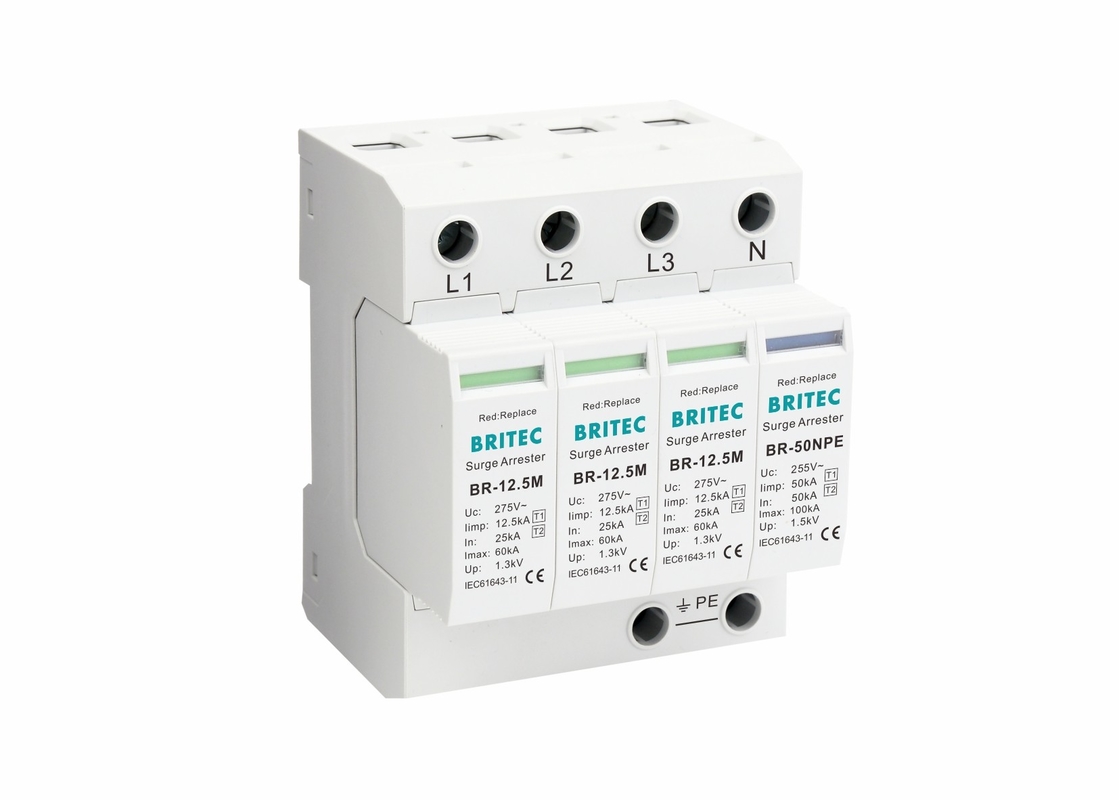

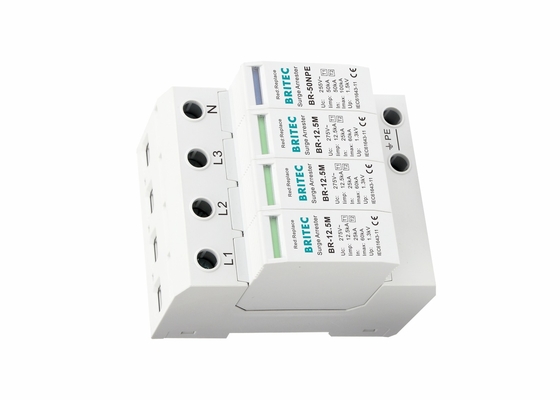

Type 1 Surge Protection Device Class B+C 12.5kA

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-12.5M 275 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Class I+II Surge Protective Device	Type:	Ac Surge Protector
Pole Number:	3+1	Uc:	150V / 275V / 320V / 385V
Iimp:	12.5kA	Imax:	60kA
Material:	Thermoplastic UL94-V0	Certificate:	CE/ROHS/ISO9001 Approved Standard
Tu:	-40℃-80℃	Application:	Surge Arrester Is Suitable For Three-phase System
Highlight:	industrial surge protection devices , ac surge protection device

Type 1 Surge Protection Device Class B+C 12.5kA Features:

Endurable, sustains thousands of strikes.
Status indication.
Uc 275V can be achieved.
Protection class: Type 1+2, Class I+II.
Pole number: 3+1.
Widely suitable for TT system, for protecting the buildings to avoid national defense.

Dimension:

Type 1 Surge Protection Device Class B+C 12.5kA 0

Type 1 Surge Protection Device Class B+C 12.5kA Product characteristics:

Specification	BR-12.5M 275 3+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1+2
SPD dassification according to IEC61643-11	Class I+II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	12.5kA
Nominal discharge current (8/20µs) In	25kA(Max:60kA)
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.1kV
Max. backup fuse	125A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Type 1 Surge Protection Device Class B+C 12.5kA 1

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Type 1 Surge Protection Device Class B+C 12.5kA 2

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Type 1 Surge Protection Device Class B+C 12.5kA 3

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Type 1 Surge Protection Device Class B+C 12.5kA 4

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

FAQ:

Q1: What's about MOQ?
A1: First order MOQ=100pcs.

Q2: How could I get a sample?
A2: We will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q3: How about your experience?
A3: We have our own factory and in-house test laboratory, our R&D department have more than 21 years experiences.
