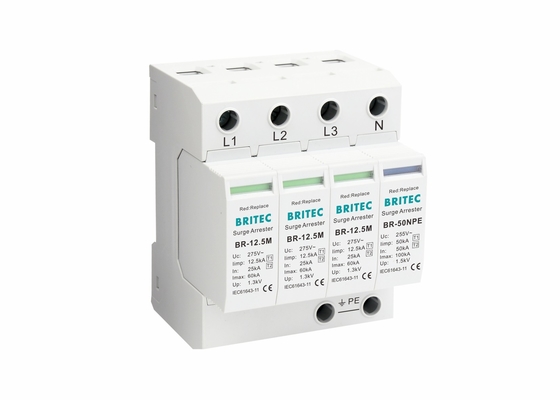

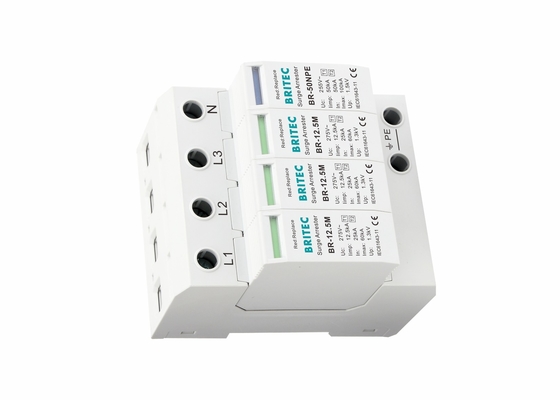

Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo

Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo

  • Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo
  • Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo
Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M-275 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 30-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Class I+II Surge Protective Device Type: Ac Surge Protector
Material: Thermalplastic UL94-VO Pole Number: 3+1
Uc: 150V / 275V / 320V / 385V Iimp: 12.5kA
Imax: 50kA Certificate: CE/ROHS/ISO9001 Approved Standard
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Three-phase System
Highlight:

industrial surge protection devices

,

ac surge protection device



12.5kA 275V Three Phase 3+1 Type 1+2 B+C Surge Protective Device For TT TNC BR-12.5M-275 3+1



Sensitive Voltage Type 1 Surge Protection Device Features:



Endurable, sustains thousands of strikes.
Status indication.
Uc 275V can be achieved.
Protection class: Type 1+2, Class I+II.
Pole number: 3+1.
Widely suitable for TT system, for protecting the buildings to avoid national defense.​



Dimension:

TY6-12.5M 1+1 3+1.jpg



Sensitive Voltage Type 1 Surge Protection Device Product characteristics:



Specification BR-12.5M 275 3+1
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1+2
SPD dassification according to IEC61643-11 Class I+II
Max continuous 0perating a.c. voltage          Uc 275V
Lightning impulse current (10/350µs)         limp 12.5kA
Norminal discharge current (8/20µs)              In 20kA(Max:50kA)
Voltage protection level                                 Up ≤1.3kV

Voltage protection level 5kA                          Up

≤1.1kV

Max. backup fuse

160A gG

Response time                                               tA

≤25ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                        Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermal plastic UL94-V0



Workshop:



Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo 2


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo 3


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


Sensitive Voltage Type 1 Surge Protection Device Type B+C With Customized Logo 4


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.



FAQ:

Q1: What's about MOQ?
A1: First order MOQ=100pcs.

Q2: How could I get a sample?
A2: We will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q3: How about your experience?
A3: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.
