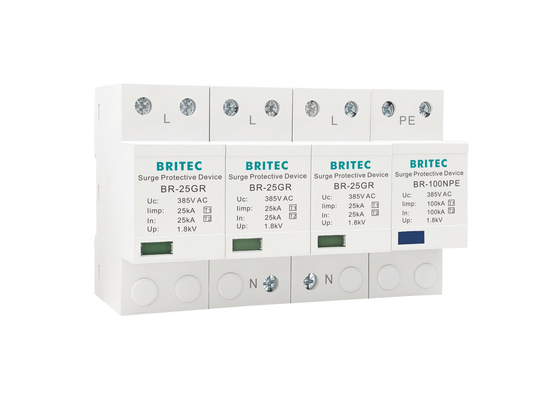

Lightning Protector Type 1 Surge Protection Device Surge Arrester

Lightning Protector Type 1 Surge Protection Device Surge Arrester

  • Lightning Protector Type 1 Surge Protection Device Surge Arrester
  • Lightning Protector Type 1 Surge Protection Device Surge Arrester
Lightning Protector Type 1 Surge Protection Device Surge Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-25GR 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 30-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union,
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protective Device Type: Ac Surge Protector
Material: Thermalplastic UL94-VO Class: SPD Classification According To EN61643-11 Type 1
Pole Number: 1P,2P,3P,4P,1+1,3+1 Iimp: 25kA
Protection: IP20 Certificate: TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Three-phase TT And TN-S System
High Light:

industrial surge protection devices


type 1 surge protector


25kA three phase 3+1 Type 1 Class I MOV GDT lightning surge protective arrester for TT,TNC


GDT Lightning Type 1 Surge Protection Device Arrester Features:


Status indication.

Model: BR-25GR 3P+NPE.

Protection class: Type 1,Class I

Thermal disconnect device.

SPD Iimp 25kA AC Power Surge Arrester.

Widely suitable for TT system,for protecting the buildings to avoid national defense.




BR25R 3+1 1+1.jpg


GDT Lightning Type 1 Surge Protection Device Arrester Product characteristics:


Specification BR-25GR 3+1
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage                      Uc 385V
Lightning impulse current (10/350µs)                      limp 25kA
Norminal discharge current (8/20µs)                          In 25kA
Voltage protection level                                             Up ≤1.8kV
Follow current extinguishing capability a.c.                lifi 25kA rms

Max. backup fuse


Response time tA


For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                    Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.)  35mm²

Enclosure material

Thermal plastic UL94-V0



Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Lightning Protector Type 1 Surge Protection Device Surge Arrester 1




Q1: How about your experience?

A: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.

Q2: What's your advantage?

A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.


Q3: Is custom design package acceptable?

A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Q4: Could you do OEM for us?

A: Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

Q5: How about warranty?

A: 2 years.


Q6: Could I buy 1pc sample first and small order?

A: Of course, support sample order, especially for new customers under certain condition.

Q7: How long make a sample?

 A: 7 days.

Q8: How does your company do regarding the quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
