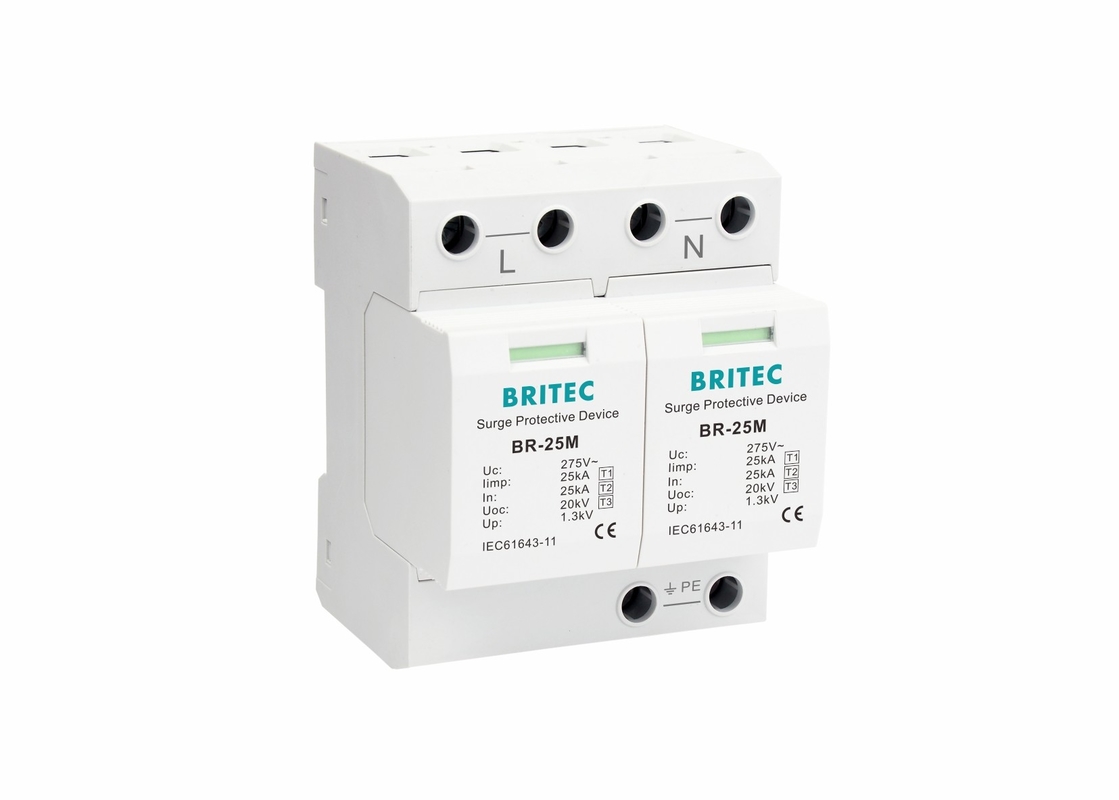

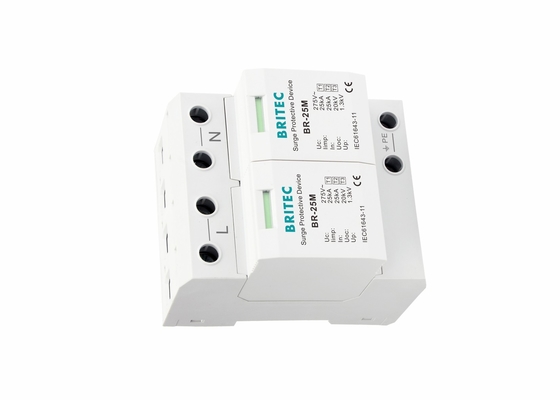

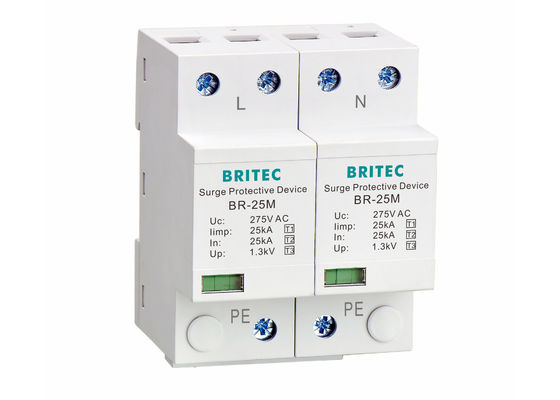

25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P

25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P

  • 25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P
  • 25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P
25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-25M 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: MOV Surge Arresters Type: Type 1+2+3
Material: Plastic Pole Number: 2P RS
Uc: 275V Iimp: 25kA
Enclosure: Thermalplastic UL94-VO Certificate: CE/ROHS/ISO9001
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Single-phase TN System
Highlight:

ac surge protection device

,

type 1 surge protector



25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P



25kA 275V Single Phase 2P Type 1 Class I Surge Arresters Features:



Multi-stage Status indicator.

No follow current.

Low voltage protection level.

Protection class: Type 1 + Type 2, Class I + Class II.

Pole number:1P,2P,3P,4P,1+1,3+1.

surge protectors are used to guard sensitive equipments from voltage spike.



Dimension:



25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 0



25kA 275V Single Phase 2P Type 1 Class I Surge Arresters Product characteristics:



Specification

BR-25M 2P

Item name

Surge Arrester

SPD dassification according to EN61643-11

Type 1+2+3

Max continuous 0perating a.c. voltage              Uc

275V

Lightning impulse current (10/350µs)               limp

25kA

Norminal discharge current (8/20µs)                   In

25kA

Voltage protection level                                      Up

≤1.3kV

Max. backup fuse

315A gG

Response time                                                    tA

≤25ns

For mounting on

35mm Din rail

Degree of protection

IP20

Operating temperature range                             Tu

-40℃—80℃

Cross-section area (Min.)

4mm²

Cross-section area (Max.)

35mm²

Enclosure material

Thermal plastic UL94-V0



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 2


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 3


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 4


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.


25kA 275V Single Phase 2P Type 1 Class I Surge Arresters With Dry Contact BR-25M 2P 5



FAQ:



Q1: How about your experience?

A: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.


Q2: What's your advantage?
A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.


Q3: Is custom design package acceptable?
A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.


Q4: Could you do OEM for us?
A: Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.


Q5: How about warranty?
A: 2 years.



Q6: Could I buy 1pc sample first and small order?

A: Of course,support sample order, especially for new customers under certain condition.


Q7: How long make a sample?
A: 7 days.


Q8: How does your company do regarding the quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
