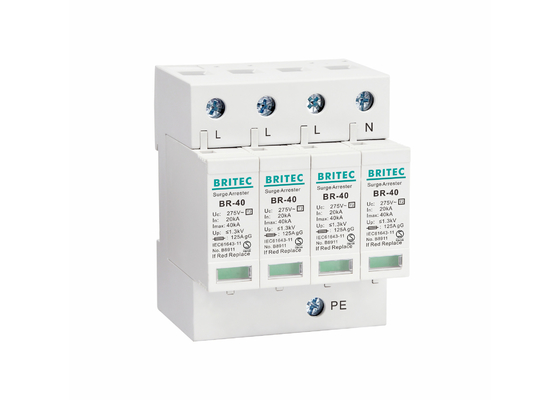

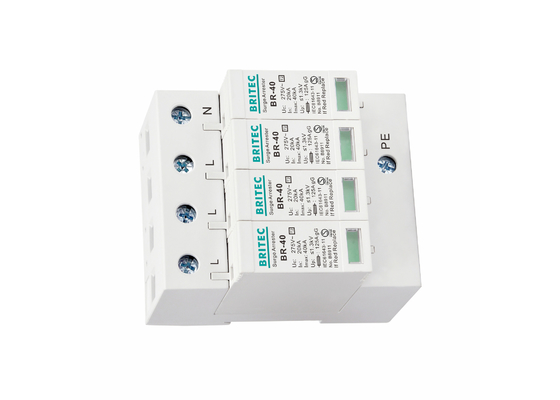

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

Name: 3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-40 4P
Price: 27.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CB/CE/TUV
Model Number:	BR-40 4P

Detail Information

Place of Origin:

China

Brand Name:

BRITEC

Certification:

CB/CE/TUV

Model Number:

BR-40 4P

Item Name:

Lightning Surge Arrester

Type:

Ac Surge Protector

Pole Number:

Uc:

275V

In:

20kA

Imax:

40kA

Enclosure:

Thermalplastic UL94-VO

Tu:

-40℃-80℃

Application:

Surge Protective Device Is Suitable For Three-phase TN-S System

Certificate:

TUV/CE/ROHS/ISO9001

Highlight:

High Light

Highlight:

lightning surge arrester

2 pole surge protector

Trading Information

Minimum Order Quantity:

100 Piece/Pieces

Packaging Details:

EXPORT PACKING

Delivery Time:

Shipped in 15 days after payment

Payment Terms:

L/C, D/A, T/T, Western Union

Supply Ability:

50000 Piece/Pieces Month

Product Description

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

3 Phase Type 2 Surge Protection Device Features:

- High performance varistor with thermal disconnection tripping device.
- Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
- Protection class: Type 2,Class II.
- Pole number: 4P.
- The core parts are metal oxide vristor components with high discharge capacity.
- Low residual voltage and quick response.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.

3 Phase Type 2 Surge Protection Device Technology characteristic:

Specification	BR-40 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 2
SPD dassification according to EN61643-11	Class II
Max continuous 0perating a.c. voltage Uc	275V
Norminal discharge current (8/20µs) In	20kA
Max. discharge current (8/20µs) Imax	40kA
Voltage protection level Up	≤1.3kV
Max. backup fuse	125A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Operating state/fault indication	green/red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94-V0

Dimension:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector 0

3 Phase Type 2 Surge Protection Device Application:

- Protecting low-voltage consumers' installations against indirect lightning discharges.
- Used to guard sensitive equipments from voltage spike.
- For using in the lightning protection zones concept at boundary 1-2.

Production process:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector 1

About us:

Wenzhou Britec Electric Co., Ltd. is a professional manufacturer, specialized in SPDs. The factory was founded in 2003 in Yueqing, Zhejiang, China. Main products are: AC surge protector, DC (PV) surge protection device, data lightning protection, LED lightning protective device and most of products got CE and TUV certificated.

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector 2

Laboratory:

Certification:

Shipping:

FAQ:

Q1: How about your experience?
A: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.

Q2: What's your advantage?
A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.

Q3: Is custom design package acceptable?
A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Q4: Could you do OEM for us?
A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.

Q5: How about warranty?
A: 2 years.
