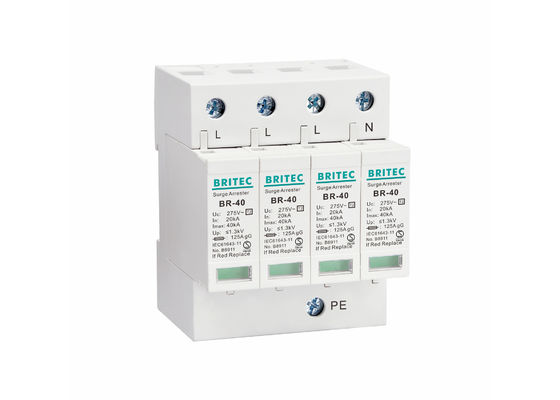

40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System

40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System
40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System 40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System

Large Image :  40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CB/CE/TUV/S
Model Number: BR-40 4P
Document: BR-40 4P old.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

40kA 4P 275V Type 2 Surge Protection Device SPD Surge Arrester for Three-Phase TN-S System

Description
Item Name: Lightning Surge Arrester Type: Ac Surge Protector
Pole Number: 4P Uc: 275V
In: 20kA Imax: 40kA
Enclosure: Thermalplastic UL94-V0 Tu: -40℃-80℃
Application: Surge Protective Device Is Suitable For Three-phase TN-S System Certificate: TUV/CE/ROHS/ISO9001
Keyword: Lightning Protection Surge Protector Type: T2 8/20us
Protection Indication: Mechanical Module: Pluggable
Installation: Parallel Arrester
Highlight:

lightning surge arrester

,

2 pole surge protector

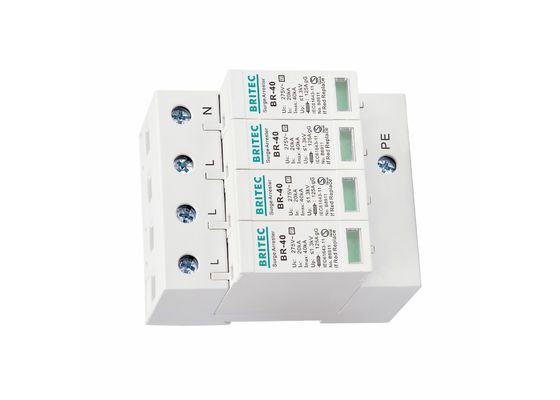

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
Product Features
  • High performance varistor with thermal disconnection tripping device
  • Plug-in module/base design facilitates replacement of failed modules without removing system wiring
  • Protection class: Type 2, Class II
  • Pole number: 4P
  • Core parts are metal oxide varistor components with high discharge capacity
  • Low residual voltage and quick response
  • Remote signaling contact for control device
  • Fault indication via red mark in the inspection window
Technical Specifications
Specification BR-40 275 4P
Item name Surge Arrester
SPD classification according to EN61643-11 Type 2
SPD classification according to EN61643-11 Class II
Max continuous operating a.c. voltage Uc 275V
Nominal discharge current (8/20µs) In 20kA
Max. discharge current (8/20µs) Imax 40kA
Voltage protection level Up ≤1.3kV
Max. backup fuse 125A gG
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃--80℃
Operating state/fault indication green/red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0
Dimensions
3 Phase Type 2 Surge Protection Device dimensional diagram
Applications
  • Protecting low-voltage consumers' installations against indirect lightning discharges
  • Used to guard sensitive equipment from voltage spikes
  • For use in lightning protection zones concept at boundary 1-2
Production Process
Surge protection device production process
About Our Company

Wenzhou Britec Electric Co., Ltd. is a professional manufacturer, specialized in SPDs. The factory was founded in 2003 in Yueqing, Zhejiang, China. Main products are: AC surge protector, DC (PV) surge protection device, data lightning protection, LED lightning protective device and most of products got CE and TUV certificated.

Wenzhou Britec Electric facility overview
Laboratory
Company testing laboratory equipment
Certifications
Product certifications and quality standards
Shipping
Shipping and logistics process
Frequently Asked Questions
Q1: How about your experience?
A: We have our own factory and in-house test laboratory, our R&D department have more than 22 years experiences.
Q2: What's your advantage?
A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Quality recognized: cooperate with transnational company.
Q3: Is custom design package acceptable?
A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.
Q4: Could you do OEM for us?
A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.
Q5: How about warranty?
A: 5 years.
