| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-40 4P |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Categories: | Surge Protector | Model: | AC SPD |
|---|---|---|---|
| In: | 20kA | Imax: | 40kA |
| TA: | ≤25ns | Material: | Thermal Plastic UL94-V0 |
| Mounting On: | 35mm Din Rail | Tu: | -40℃...+80℃ |
| Terms Of Payment: | T/T | FOB Port: | Ningbo/Shanghai Port |

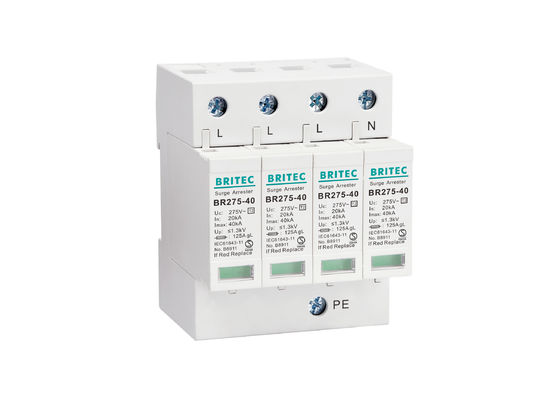

40kA Three Phase AC SPD Electrical Manufacturer Plastic Thunder Arrester
40kA Three Phase AC SPD Description:
• BR-40 AC SPD series surge protection device (in short SPD, alias: surge suppressor surge arrester) is suitable for TN-S, TN-C-S, TT etc., power supply system of AC 50/60Hz. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, when the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal.
40kA Three Phase AC SPD Product Details:
| BR150 40 4P | BR275 40 4P | BR320 40 4P | BR385 40 4P | BR440 40 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | ||||
| Enclosure material | Thermal plastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
| Order Code | B8401 | B8403 | B8405 | B8407 | B8409 |
| Order Code (With remote signaling) | B8402 | B8404 | B8406 | B8408 | B8410 |
Technology characteristic:

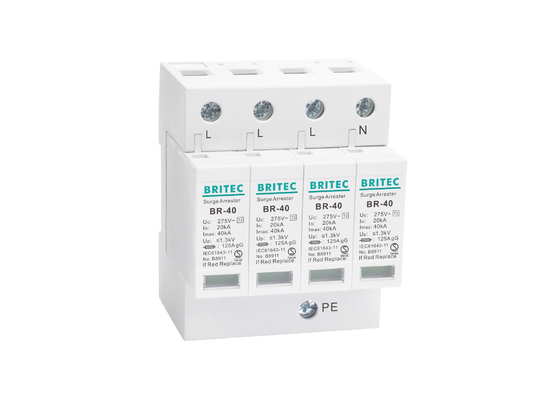

40kA Three Phase AC SPD Product Details Show:
• Maximum current of endure the lightning stroke 40KA.
Installation:
Our Services:
Certificate:
Company profile:
Wenzhou Britec Electric Co., Ltd. was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.
Production flow:
Laboratory equipment:
Shipping:
FAQ:
1 How long is your products warranty ?
A: The warranty period of our products is 2 years.
2 How about inspection?
A: We have the whole inspection system from raw material to end products.
3 What do you have for certificate?
A: Our products are passed through CE, TUV, CB standarded.
4 What is payment terms?
A: T.T, Paypal and L/C is acceptable.
5 What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement. We also have the sales team to offer good service from pre-sale to after-sale.
6 How to become the agents for Britec?
A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
