Name: BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V
Brand: BRITEC
SKU: BRPV3-1500-12.5
Price: 1 USD
Availability: InStock
Rating: 4.9 (103 reviews)

Home Products DC Surge Protection Device

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV CE
Model Number:	BRPV3-1500-12.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-20 days after payment
Payment Terms:	T/T, L/C
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / EN50539-11	Classification:	Type 1+Type 2
Shipping Term:	TNT DHL FEDEX EMS UPS	OEM/ODM:	Available
Voltage:	1500VDC	In:	20kA
TA:	≤25ns	Mounting On:	35mm Din Rail
Where Use:	PV System	Temperature Range:	Normal
Degree Of Protection:	IP 20
High Light:	DC1500V Surge Arrester , Photovoltaic spd Solar Surge Protection Device , IP 20 spd Surge Protection Device

12.5kA Solar PV 20KA-50ka DC surge protector surge protection spd

DC 1500V surge protector Feature:

Features:

High energy varistors

Ucpv 1500V.

Fault display and remote alarm function

High energy varistors.

The current capacity is 12.5kA with 10/350μs waveform

Like all outdoor structures, PV installations are exposed to the risk of lightning which varies from region to region. Preventive and arrest systems and devices should be in place.

surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).

These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.

DC 1000V surge protector Product Details:

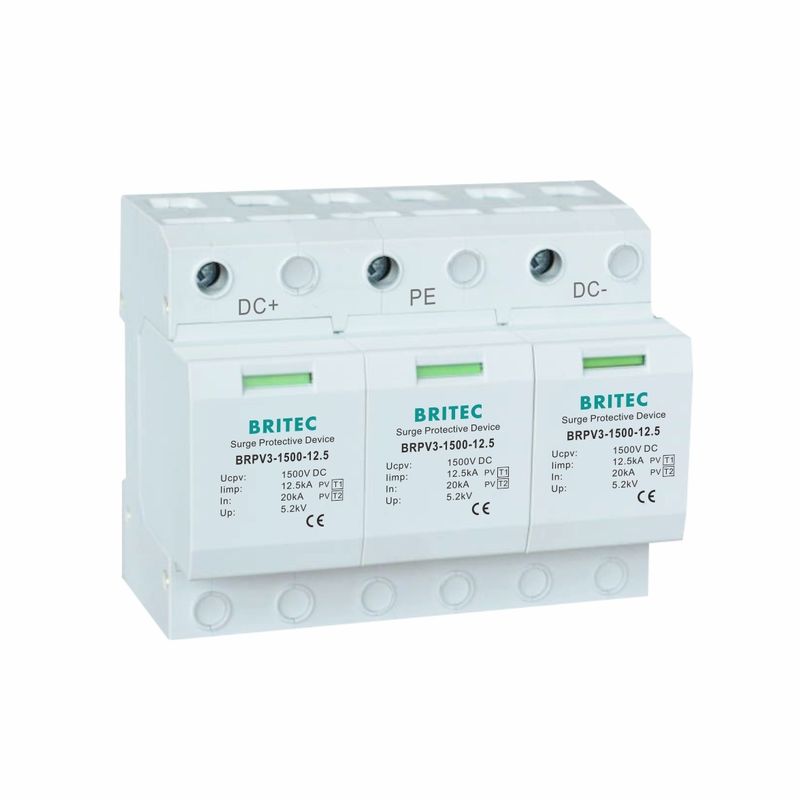

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 1

Specification	BRPV3-1500-12.5
SPD classification according to EN61643-31	Type 1+ Type 2
SPD classification according to IEC61643-31	Class I + Class II
Max. continuous operating d.c. voltage Ucpv	1500V
Lightning impulse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20μs) In	20kA
Max. discharge current (8/20μs) Imax	50kA
Quantity of electric charge Q	6.25As
Specific energy W/R	39kJ/Ω
Voltage protection level [(DC+/DC-)→PE] Up	≤5.2kV
Short-circuit current rating Iscpv	1000A
Max. backup fuse	125A DC fuse
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Cross-section area (Min.)	4mm2
Cross-section area (Max.)	35mm2
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B9192
Order Code (With remote signaling)	B9193

Other type for choose:
1,Maximum discharge current:40kA,50kA,
2,Number of poles:2P,3P,
3,Maximum continuous operating dc voltage: 600V,1000V,1500V ,

4,Lightning impulse current(10/350us):12.5kA

Application:

• Mainly used in the solar photovoltaic power generation DC junction box, the generated solar cell photovoltaic module surge or light is protected by lightning, so as to protect the solar photovoltaic module panel.

• Used for surge protection of electrical components in any other DC circuit.

• Surge protectors for solar power generation systems

• It is suitable for surge protection of DC power supply line equipment of solar power generation system.

Advantage:

• Strong ability of lightning current discharge

• Modular separation structure, easy operation and maintenance.

• Remote contact is optional to realize remote monitoring

• Double heat trip device, temperature control circuit breaker technology.

• The color of the visual alarm window indicates the working status of the protection.

Installation and maintenance:

• Installed in parallel at the interface of LPZ1 zone and subsequent zones: power controller, power converter, etc.

• When the surge arrester is installed under the required conditions, it does not require long-term maintenance, but only routine maintenance. If the color of the visible alarm window changes to red (fault) during use, it indicates that the surge protector is damaged and needs to be repaired or replaced

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 2

The protector housing is made of nonflammable class material in according with UL94V-0 standard and DIN rail 35 mm. Mountable.

The protector is for protecting your valued equipment from surges, transients,

lightning impulses coupled into power system via direct or indirect strikes,

an on/off or a short circuit in the transmission lines, induced or coupled into

a DC voltage system, providing the safety of your personnel, communication

equipment, computers and any other electronic equipment e.g. solar power

system and etc

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Why need surge arrester?

Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.

Installation instruction:

• Mount the SPD on 35 mm DIN rail.

• The SPD is placed in parallel between the energized conductors and ground.

• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.

Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 3

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 5

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 6

Our certificate:

We got CB, CE, TUV,RoHS Certificate:

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 7

Payment:

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment.
		FOB
		CIF	30% T/T in advance, paid the balance against copy of B/L.
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight.
	Paypal	Amount lower than 5000usd.
Delivery Time	15-30 days after receiving deposit.

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 8

Factory:

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 10

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 11

BRPV3-1500-12.5 Photovoltaic Spd Solarsurge protection t1 t2 dc Device PV Arrester DC 1500V 12

FAQ:

Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.

Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
