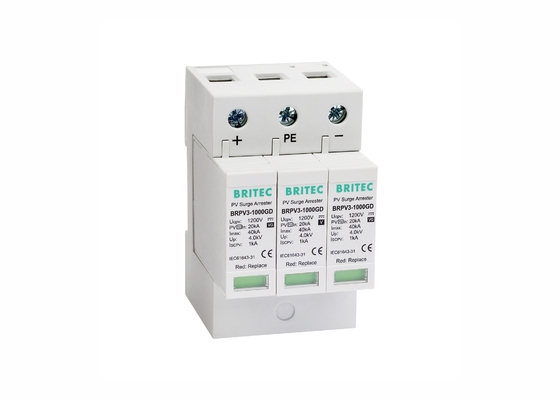

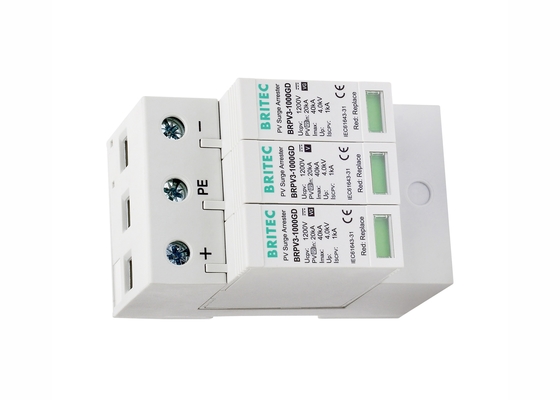

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved

  • IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved
  • IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved
IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3 600 GD/ BRPV3 1000 GD
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
TU: -40℃…+80℃ Material: Thermalplastic UL94-V0
Ucpv: 600V / 1000V In: 20kA
Imax: 40kA TA: ≤100ns
Degree Of Protection: IP20 Item: PV Surge Arrester
Class: Type 2 Standard: IEC61643 / EN50539-11
High Light:

dc surge arrester

,

type 2 surge arrester

BRPV3GD Type 2 DC Surge Arrester For PV*No Leakage Current Thermalplastic UL94-V0

IP20 PV Surge Arrester Product Details:



  BRPV3 600 GD BRPV3 1000 GD
SPD classification according to EN61643-11 Type2 Type2
SPD classification according to EN50539-11 Class II Class II
Max.continuous operating d.c.voltage                        Ucpv 600V 1000V
Nominal discharge current(8/20us)                                  In 20kA 20kA
Max. discharge current(8/20us)                                   Imax 40kA 40kA
Voltage protection level [(DC+/DC-)→PE]                      Up ≤2.6kV ≤4.0kV
Response time                                                                tA ≤100ns ≤100ns
Operating temperature range                                        Tu -40℃-80℃
Operating state/ fault indication green / red green / red
Cross-section area(Min.) 4mm² 4mm²
Cross-section area(Max.) 35mm² 35mm²
For mounting on 35mm Din rail 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection IP20 IP20
Order Code B8005 B8006
Order Code(With remote signal) B8007 B8008


Dimension:

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 0


Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 4


Product Uses:


Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

IP20 PV Surge Arrester No Leakage Current -40 To 80 ℃ Temp CE Approved 5


FAQ:



Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.



Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
