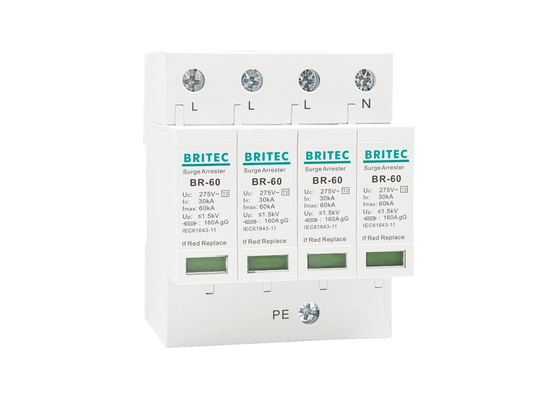

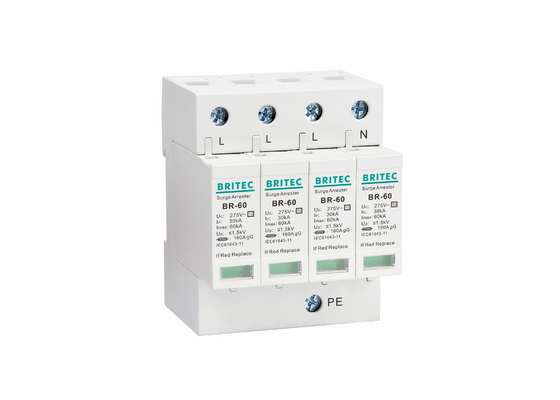

320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA

320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA

  • 320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA
  • 320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA
320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR320-60 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protective Device Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Model Numbers: BR320-60 4p
Uc: AC 320V Safety Standard: IEC61643-1
Pole Number: 4P In: 30kA
Imax: 60kA Class: Class II
High Light:

lightning protection device

,

lightning surge protector

High Quality 320V Voltage Limiter SPD 3P+N Surge Protective Device Class II 60KA



Features:


• Have a good discharge capacity.
Visual display for operation.
Adopt energy-rich voltage dependent resistor, nanosecond level speed of response.
Convenient to pull & inserted mold, possible to remove failed module installation method.


Technology characteristic:



  BR320-60 4P
Max. continuous operating a.c. voltage         Uc 320V
Nominal discharge current (8/20us)               In 30kA
Max. discharge current (8/20us)                Imax 60kA
Voltage protection level                                 Up ≤1.8kV
Response time                                               tA ≤25ns
Degree of protection IP20
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 200A gL
Operating temperature range                        Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure materail Thermal plastic UL94-V0
MOQ 200pcs
Port of loading Ningbo/Shanghai
Function Lightning protection
For mounting on 35mm Din rail
Note Other maximum continuous working voltage Uc can be customized



Dimension:



320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA 0


Application:



• SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage,

  operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

It’s suitable for three phase, TN-S power distribution system.

Certificate:

320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA 1

Shipping:

320V Voltage Limiter SPD Power Surge Protection Device 3P + N Class II 60KA 2

FAQ:

Q1. What's the payment term?
  A. We accept TT, 30% deposit and 70% balance before shipment.

Q2. Would you accept to use our logo?
  A. If you have good quantity, it absolute no problem to do OEM.


Q3: Do you accept customized order?

  A: Yes, we do.



Q4: What's the delievery time?

  A: It usually takes 15-30 days after confirming payment, but specific time should be based on the order quantity.



Q5: Is sample available and free?

  A: Sample is available, but it is not free. And the cost of sample will be refund after further order.



Q6: When I can receive quotation and detail information after send the enquiry?
  A: Reply will be sent in 24hours.
