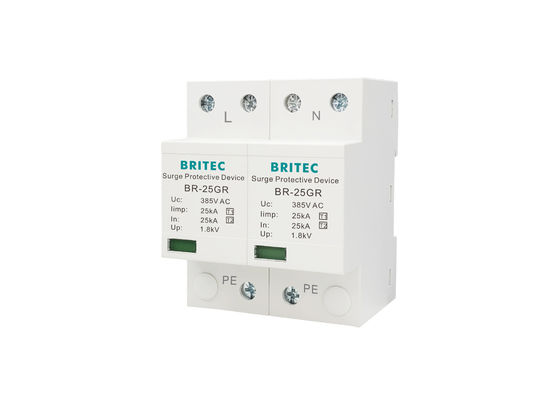

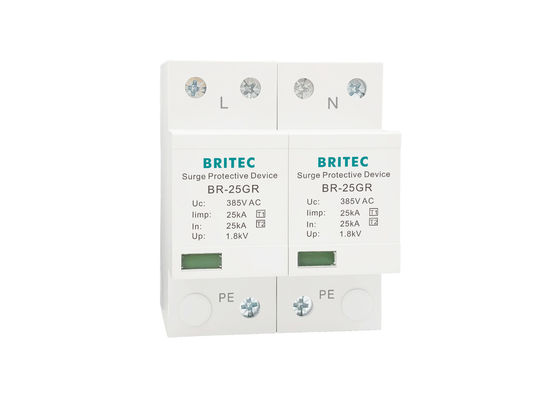

Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643

Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643

  • Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643
  • Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643
Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643
Product Details:
Place of Origin: China
Certification: CE
Model Number: BR-25GR 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Brand Name: BRITEC Item Name: Surge Protector
Place Of Origin: Zhejiang, China (Mainland) Type: Type 1
Material:: Thermal Plastic Type Item: BR-25GR 2P
Color: White&Grey Rated Voltage: AC 385V
Iimp: 25kA Usage: Low Voltage
High Light:

lightning protection device

,

lightning surge protector

Electrical Surge Suppressor Power Surge Protector 385v SPD 25KA IEC - 61643



Electrical Surge Suppressor Power Surge Protection Device Features:



• Surge arrestors.

Quick response.
High arresting capacity up to 25 kA (10/350μs).
Low residual pressure.
Simple standard hat rail mounting.
Automatic trip during deterioration and the visual warning indicator window turns red (failure).
Labeled connections.
Flame retardant plastic are adopted.



Electrical Surge Suppressor Power Surge Protection Device Technology characteristic:



                           BR-25GR 2P
Max. continuous operating a.c. voltage                            Uc 385V
Lightning impulse current (10/350us)                             Iimp 25kA
Nominal discharge current (8/20us)                                   In 25kA
Max. discharge current (8/20us)                                    Imax 100kA
Response time                                                                   tA ≤100ns
Nominal freqency 50/60Hz
Installation Indoor type
Degree of protection IP20
Max. backup fuse 315A gG
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2



Dimension:



Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643 0



Electrical Surge Suppressor Power Surge Protection Device Application:



• Usable in systems with lightning protection class I.

Applied power supply systems.



Operating environment:

Operating temperature: -40℃~+80℃.
Relative humidity: 5%-95%.
Atmosphere pressure: 70kPa~106kPa.



Reference standards:



• YD/T1235.2-2002 Test methods of surge protective device applied in low voltage distribution system for communication centers (stations).

• IEC 61643-1:2005 Low-voltage surge protective devices-Part 1: Surge protective devices connected to low-voltage power distribution systems-requirements and tests.

• EN 60950-1/A12:2011 Low-voltage surge protective devices-Part 12: Surge protective devices connected to low-voltage power distribution systems-performance requirements and tests.

• GB 18802.1-2002 Surge protective devices connected to low-voltage power systems, part 1: Performance requirements and tests.



Production Plant:



Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643 1



Company information:



Wenzhou Britec Electric Co., LTD. is located in Yueqing. We provide all kinds of SPDs including: AC power supply surge arrester, DC surge protector, data surge protective device and LED lightning protection. Our firm also brings you considerable expertise in the areas of product design, engineering, assembly, packaging and quality assurance. For many of our customers, we are their sole manufacturing resource, we are in this field for over 17 years. Warmly welcome customers from home and abroad to trade and negotiate with us for the mutual benefits and prosperity.



Electrical Surge Suppressor Power Surge Protection Device 385v SPD 25KA IEC - 61643 2



FAQ:



Q1: What kind of a company we are?

  A: We are a professional suppiler located in Wenzhou, Zhejiang, China. We were gainning good reputation among our customers for our professional, warm and thoughtful service, Because we know that a long terms business based on the quality control, prices, packing, delivery time etc.



Q2: What's the quality assurance we provided and how do we control quality?

  A: 100% inspection in assembly lines.



Q3: Do you support OEM?
  A: Yes, we can make products as your request.



Q4: What's your MOQ?
  A: MOQ: Normally 100pcs or based on the unit price of the certain product.



Q5: How can I get a sample to check your quality?
  A: After price confirmation, you can require for samples to check our quality.
