Product Description:
The Others product is a versatile lightning strike counter designed to provide reliable protection for your electrical systems. This product is part of the SCB surge protection series, known for its high-quality performance and durability.
With a maximum diameter of down conductor of ≤20mm, the Others lightning strike counter is suitable for various installation setups. Its compact size, measuring at L×W×H (mm): 132×69×50, allows for easy integration into different electrical configurations.
When it comes to customizing the Others lightning strike counter, you have the flexibility to choose the printing design as per your requests. This feature enables you to personalize the product according to your specific needs or branding requirements.
As part of the SCB surge protection lineup, the Others product comes with a 1-year warranty, providing you with peace of mind regarding its quality and performance. This warranty reflects the confidence that SCB has in the durability and reliability of their lightning strike counter.
Overall, the Others lightning strike counter offers a combination of functionality, durability, and customization options, making it a reliable choice for protecting your electrical systems from lightning strikes and power surges.
Features:
- Product Name: Others
- Printing: As Your Requests
- Design: OEM.ODM Designs
- Maximum diameter of down conductor: ≤20mm
- Function: Lightning Strike Counter
- L×W×H (mm): 132×69×50
Technical Parameters:
| Specification |
|
BR-SC02M |
| Nominal discharge current (8/20μs) |
In |
4kA-150kA |
| Lightning impulse current (10/350μs) |
Iimp |
4kA-50kA |
| Maximum Diameter of Down Conductor |
|
≤20mm |
| Maximum Width of Flat Steel |
|
＜35mm |
| Thickness |
|
＜12mm |
| Counting Number |
|
0-999999 |
| Protection Level |
|
IP65 |
| LxWxH (mm) |
|
132×69×50 |
| Working Temperature |
|
-40～＋85℃
|
Features:

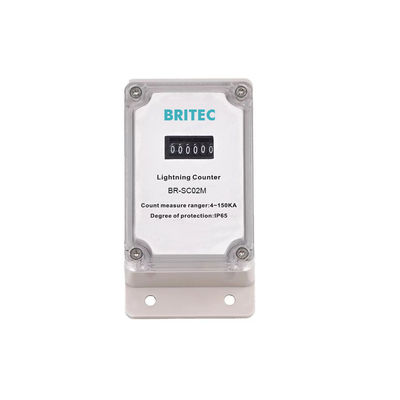

The BR-SC02M lightning strike counter is a general-purpose counter.
When the lightning protection circuit system is normal, there is no current flowing through the discharge line, and the lightning counter does not count. When lightning current discharge occurs in the circuit, the lightning protection circuit discharges the lightning current to ground. When current flows through the discharge line, the counter senses the voltage and starts to count.
Application:
The BR-SC02M lightning strike counter is applicable to all SPDS, lightning rods, etc. It can sense and discharge lightning current and display the cumulative number of lightning strikes on the digital screen. The product counting is accurate and there are no error-free actions. The working data will not be lost after power failure, and it has functions such as dust-proof and water-proof.
Packing and Shipping:
This product comes in a carefully designed packaging to ensure its safety during shipping. Our team pays extra attention to packaging each item securely to prevent any damage.
For shipping, we partner with reliable courier services to deliver your order promptly. You can track your shipment using the provided tracking number to know exactly when to expect your package.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is BRITEC.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5PCS.
Q: What are the payment terms for purchasing this product?
A: The payment terms for purchasing this product are TT (Telegraphic Transfer).
Q: What is the delivery time for this product?
A: The delivery time for this product is 15 days after receipt of deposit.
