48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range
48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range
  • 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range
  • 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range
  • 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range
  • 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range

48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-POE-M
Document: BR-POE.pdf
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Certification:
TUV/CB/CE/ROHS/ISO9001
Model Number:
BR-POE-M
Document:
BR-POE.pdf
Nominal Voltage:
48V
IP Code:
IP20
Product Name:
Ethernet Surge Protector
Operating Temperature:
-40°C To +85°C
Product Name:
Ethernet Surge Protection Devices
Connector Type:
RJ45
Warranty:
3 Years
Humidity Range:
0-95% RH
Highlight:

High Light

Highlight:

48V POE surge protector

,

RJ45 ethernet surge protector

,

Power Over Ethernet data protector

Trading Information
Minimum Order Quantity:
10 PCS
Packaging Details:
carton
Delivery Time:
15 days after receipt of deposit
Payment Terms:
TT
Supply Ability:
1000000 per month
Product Description

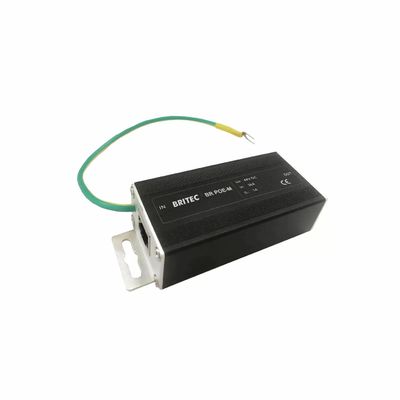

BR-POE-M 48V RJ45 Surge Protection Ethernet Surge Protector
48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 0 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 1 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 2
The "Net Defender" permits the use of Power over Ethernet (PoE) surge protector with nominal currents of up to 1 A. It can be snapped directly onto the hat rail and uses it to create the necessary equipotential bonding. Alternatively, terminal protection using a separately connectable.
Key Features
  • POE Ethernet surge protector for comprehensive network protection
  • Ideal for wireless APs, network cameras, switches and other communications equipment
  • Integrated power supply + signal POE surge protection design
  • High-quality components for excellent performance
  • Low residual voltage with efficient surge protection
  • Fast response time with stable, reliable operation
  • Compact size for convenient application and maintenance-free operation
Technical Specifications
Specification BR-POE-M
Test standards IEC 61643-21
SPD class TYPE2 P1
Nominal voltage 48V
Max. continuous operating d.c. voltage 48V
Max. continuous operating a.c. voltage 34V
Max. continuous operating d.c. voltage pair-pair(PoE) 57V
Nominal current 1A
D1 Lightning impulse current (10/350 μs) per line 0.5kA
C2 Nominal discharge current (8/20μs) line-line 150A
C2 Nominal discharge current (8/20μs) line-PG 2.5kA
C2 Total nominal discharge current (8/20μs) line-PG 10kA
C2 Nominal discharge current (8/20μs) pair-pair(PoE) 150A
Voltage protection level pair-pair for In C2 ≤180V
Voltage protection level line-PG for In C2 ≤500V
Voltage protection level line-line for In C2(POE) ≤600V
Insertion loss at 250 MHz ≤3dB
Capacitance line-line ≤30pF
Capacitance line-PG ≤25pF
Operating temperature range -40℃ to +80℃
For mounting on 35mm DIN rails acc. to EN 60715
Connection (input/output) RJ45 socket/RJ45 socket
Pinning 1/2, 3/6, 4/5, 7/8
Earthing via 35mm DIN rails acc. to EN 60715
Enclosure material Polyamide PA 6.6
Degree of protection (plugged-in) IP10
Order Code D9160
Additional Parameters
Parameter Value
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Nominal Voltage 48V
Material Aluminum Alloy
Warranty 3 Years
IP Code IP20
Adapt Transmission Rate 1000Mbps
Humidity Range 0-95% RH
Applications
BRITEC Ethernet Surge Protection Devices, model number BR-POE-M, provide reliable surge protection for Ethernet networks. Certified by TUV, CB, CE, ROHS, and ISO9001, these protectors are suitable for various applications requiring RJ45 surge protection with a 1000Mbps transmission rate.
  • Industrial Environments: Protects Ethernet networks in industrial settings against electrical surges
  • Commercial Buildings: Safeguards Ethernet connections in offices and retail spaces
  • Outdoor Installations: Durable design withstands outdoor conditions (-40°C to +85°C)
  • Data Centers: Protects critical network infrastructure in data-intensive operations
Ordering Information
Detail Information
Brand Name BRITEC
Model Number BR-POE-M
Place of Origin China
Certification TUV/CB/CE/ROHS/ISO9001
Minimum Order Quantity 10 PCS
Packaging Details Carton
Delivery Time 15 days after receipt of deposit
Payment Terms TT
Supply Ability 1,000,000 units per month
Frequently Asked Questions
Q: What is the brand name of this Ethernet Surge Protection Device?
A: The brand name is BRITEC.
Q: What is the model number of this Ethernet Surge Protection Device?
A: The model number is BR-POE-M.
Q: Where is this Ethernet Surge Protection Device manufactured?
A: It is manufactured in China.
Q: What certifications does this Ethernet Surge Protection Device have?
A: It is certified by TUV, CB, CE, ROHS, and ISO9001.
Q: What is the minimum order quantity for this Ethernet Surge Protection Device?
A: The minimum order quantity is 10 PCS.
48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 3 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 4 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 5 48V POE Surge Protector with 3 Years Warranty for Outdoor Use in -40°C To +85°C Operating Temperature and 0-95% RH Humidity Range 6
