| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-40-24 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Enclosure Material: | Thermoplastic UL94-V0 | Type: | T2 |
|---|---|---|---|
| Response Time: | ≤25ns | Voltage Protection Level: | ＜800V |
| Protection Grade: | IP20 | Cross-section Area (Max.): | 35mm² |
| Operating Voltage: | DC 24V | Type Of Current: | DC |
| Warranty: | 5 Years | Certificate: | TUV CE IEC ROHS |
| High Light: | BR-40-24 DC SPD,DC SPD Pv Surge Arrester,40kA 24v Pv Surge Arrester |
||

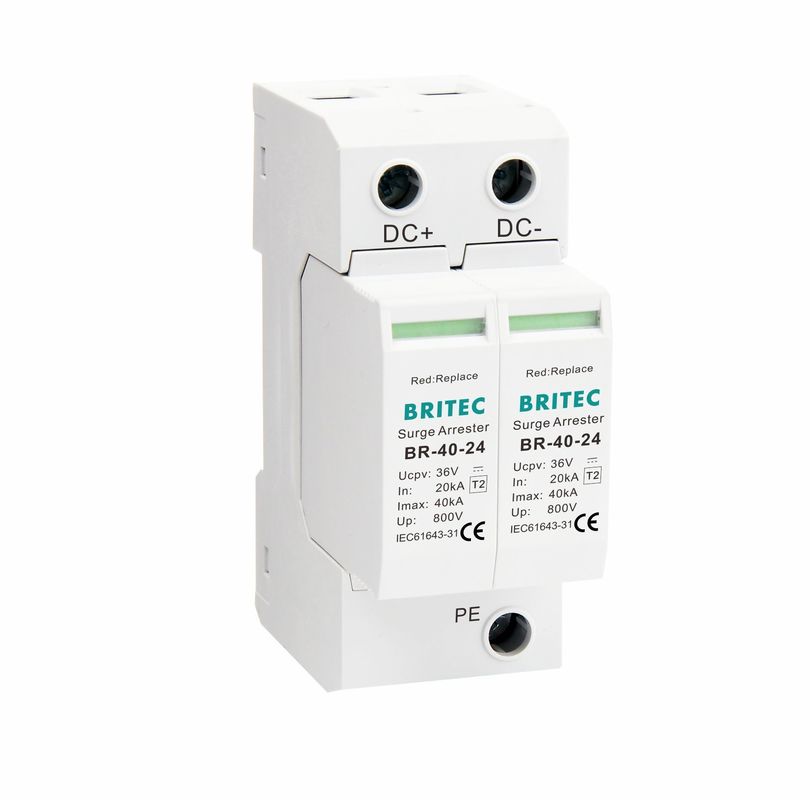

24v 40ka DC Surge Arrester Type II Power Lightning Arrester Product detail:
| 2 Mod | BR-40-24 |
| SPD classification according to IEC61643-31 | Class II |
| Operating Voltage Un | DC 24V |
| Max. Continuous Operating Voltage Uc | DC 36V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ＜800V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Technology | MOV |
| Format | Plug-in modular |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Standards compliance | IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
BRITEC has designed a wide range of surge protectors for all the
DC power networks.
These surge protectors are available in a wide range of versions
to be adaptable to all configurations :
• Type 1 or Type 2 Surge protectors
• DC voltage from 12 to 1500 Vdc
• Pluggable versions
Company information:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Contact Person: Lucky Zhu
Tel: +8615888436909
