| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-25GR 4P |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Iimp: | 25kA | Protection Modes: | L-PE, N-PE |
|---|---|---|---|
| Un: | 240V/400V | Response Time: | 100ns |
| Operating Temperature Range: | -40℃~+80℃ | Product Name: | Type 1 Surge Protection Device |
| Weight: | 1000g | Protection Level: | Type 1 |
| Brand: | BRITEC | Origin: | Wenzhou |
| High Light: | 400V Surge Protective Device,Surge Protective Device 25kA,Type1 Surge Protector T1 |
||

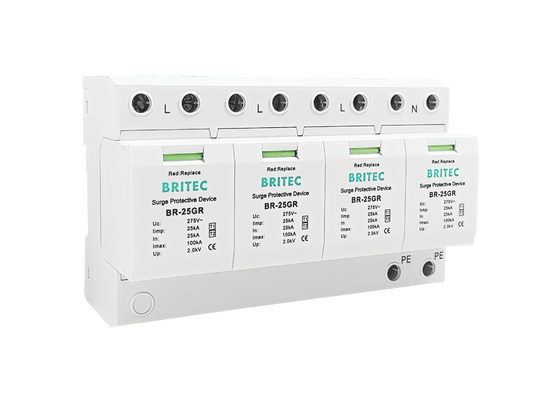

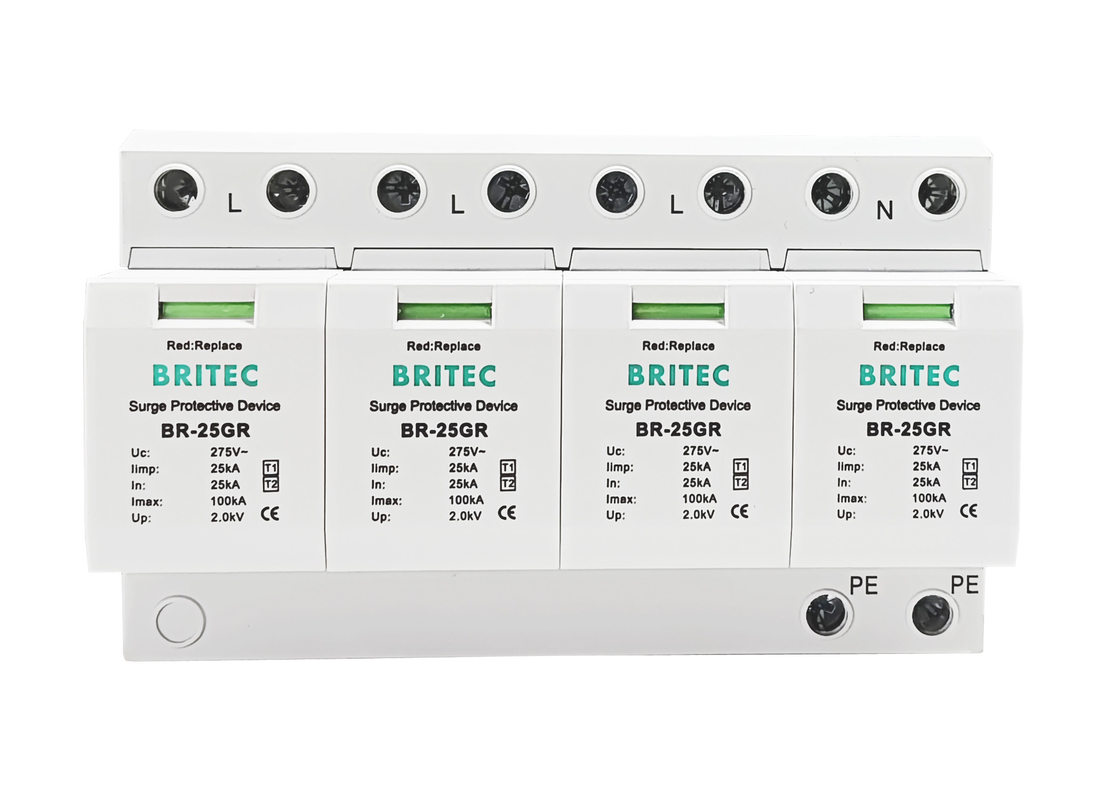

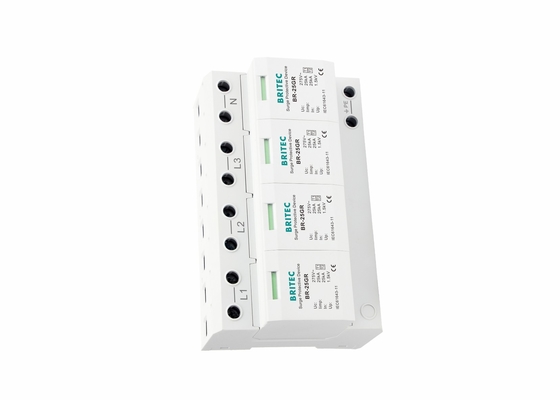

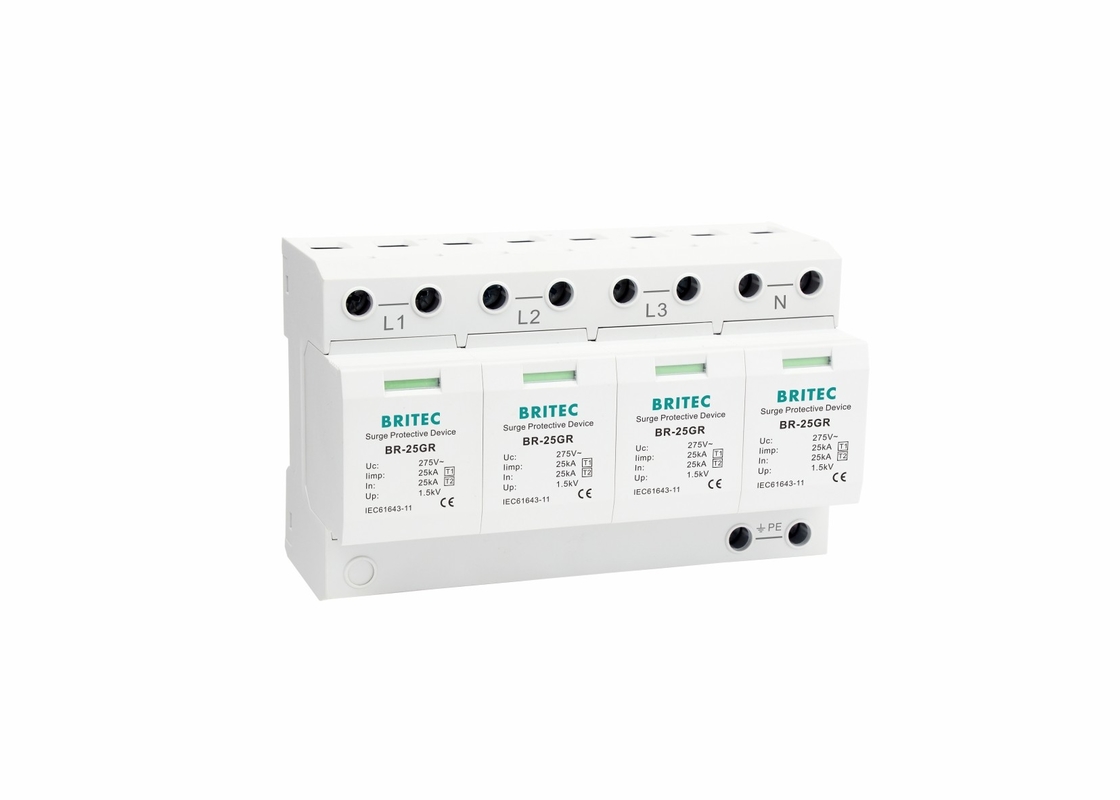

Type 1 Surge Protection Devices (SPDs) are surge protector devices designed to provide reliable protection against damaging voltage spikes and surges. These devices are available with a protection level of Type 1, and have a rated voltage of 240V/400V. The device is lightweight, weighing only 1000g, and has an operating temperature range of -40℃~+80℃. Additionally, its Iimp rating is 25kA, making it an ideal choice for protecting against surges and spikes.
| Specification | BR-25GR 4P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 25kA |
| Norminal discharge current (8/20µs) In | 25kA |
| Maximum discharge current (8/20µs) Imax | 100kA |
| Voltage protection level Up | ≤2.0kV |
| Short-circuit current rating lsccr | 25kA rms |
| Max. backup fuse | 315A gG |
| Response time tA | ≤100ns |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
1. Product Name: Type 1 Surge Protection Device
2. Protection Level: Type 1
3. Maximum continuous operating voltage Uc: 150V/275V/320VAC
4. Un: 240V/400V
5. Iimp: 25kA
6. Operating Temperature Range: -40℃~+80℃
It is able to provide reliable protection for equipment, personnel and buildings from overvoltage caused by lightning or other transient overvoltage. With this device, it can protect from fire and electric shock, reduce the damage caused by lightning and transient overvoltage, and improve the safety of the power system.
It is mainly used for the first level of lightning surge overvoltage protection of AC distribution system, which is used to protect electrical and electronic equipment from the influence of lightning electromagnetic pulse induced voltage, operating transient and resonant (<100µs) overvoltage. Widely used in communication equipment, power, security, traffic, industrial control and other fields of power protection.
Type 1 Surge Protection Device Packaging and Shipping:
The Type 1 Surge Protection Device should be packed in an appropriate cardboard box. The box should be sealed with tape and labeled with a shipping address. Shipping is done through a reputable carrier, such as FedEx or UPS, with appropriate insurance for the value of the product.
Q1: What is BRITEC BR-25GR 4P Surge Protection Device?
A1: BRITEC BR-25GR 4P Surge Protection Device is a device that provides surge protection to electrical and electronic equipment. It is certified by TUV/CB/CE/ROHS/ISO9001 and is designed to protect against electrical surges and transients.
Q2: What is the minimum order quantity for BRITEC BR-25GR 4P Surge Protection Device?
A2: The minimum order quantity for BRITEC BR-25GR 4P Surge Protection Device is 100 PCS.
Q3: Where is BRITEC BR-25GR 4P Surge Protection Device from?
A3: BRITEC BR-25GR 4P Surge Protection Device is from China.
Q4: What is the packaging for BRITEC BR-25GR 4P Surge Protection Device?
A4: The packaging for BRITEC BR-25GR 4P Surge Protection Device is carton.
Q5: How long is the delivery time for BRITEC BR-25GR 4P Surge Protection Device?
A5: The delivery time for BRITEC BR-25GR 4P Surge Protection Device is 20 days after receipt of deposit.
