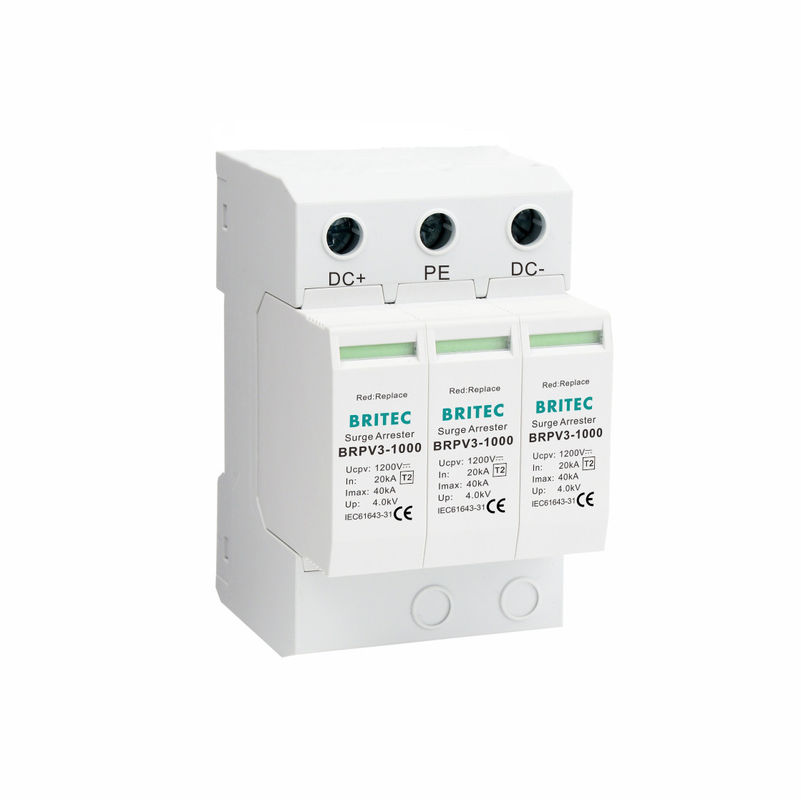

BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD

BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD

  • BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD
  • BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD
BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Contact Now
Detailed Product Description
Voltage Protection Level: ≤4.0kV Product Name: DC Surge Protection Device
Rated Voltage: DC Storage Temperature Range: -40℃~+85℃
Maximum Discharge Current: 40KA(8/20μs) Enclosure Material: Thermoplastic UL94-V0
Cross-section Area (Max.): 35mm² Cross-section Area (Min.): 4mm²
High Light:

BRPV3-1000 DC Surge Protection Device

,

1000v Surge Arrester

,

Surge Protection Device 1000v

BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD 0

Features:



These units must be installed in parallel on the DC networks to be protected
Built-in over current and over heat, temperature control open circuit technology.
Adopt independent intelligence property right and high performance sensitivity resistance plates.
The BRPV series is made with plug-in modules to allow a fast and easy maintenance in case of failure (disconnection from the DC network).
With remote connection, can realize remote control.



Application:



Designed especially for surge protection of the PV strings, apply to the Photovoltaic power grid-connection system.

Used for PV systems with or without separate lightning protection system.

Used to protect the sensitive line of the solar power generation protection device.

It widely used in PV DC combiner box, inverter, controller and PV DC cabinet.

Features:


  • Product Name: DC Surge Protection Device
  • Response Time: ≤25ns
  • Storage Temperature Range: -40℃~+85℃
  • Rated Voltage: DC
  • Voltage Protection Level: ≤4.0kV
  • Maximum Continuous Operating Voltage: ≤DC 1000V
  • Special Feature: Solar Surge Protective Device (SPD)


Technical Parameters:

Attribute Specification
Operating Temperature Range -40℃~+85℃
Cross-section area (Max.) 35mm²
Maximum Discharge Current 40KA(8/20μs)
Maximum Continuous Operating Voltage ≤DC 1000V
Cross-section area (Min.) 4mm²
Enclosure material Thermoplastic UL94-V0
Operating state Green / Red
Storage Temperature Range -40℃~+85℃
Product Name DC Surge Protection Device
Response Time ≤25ns


Applications:

BRITEC BRPV3-1000 DC Surge Protection Device (PV Surge Protector, DC SPD) is a reliable device designed to protect electrical systems from the damage caused by sudden voltage spikes. This device is certified by TUV/CB/CE/ROHS/ISO9001 and has a minimum order quantity of 1PCS. It comes in a carton and will be delivered within 15 days after receipt of deposit. Payment is accepted via TT. BRITEC BRPV3-1000 DC Surge Protection Device is highly reliable with a maximum supply capacity of 1000000 per month. The response time is ≤25ns and the maximum discharge current is 40KA (8/20μs). The operating state of the device is switchable between Green and Red and it is suitable for use in humidity conditions up to 95%RH. The maximum cross-section area for this device is 35mm².


Customization:

Brand Name: BRITEC
Model Number: BRPV3-1000
Place of Origin: China
Certification: TUV/CB/CE/ROHS/ISO9001
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Response Time: ≤25ns
Cross-section area (Min.): 4mm²
Product Name: DC Surge Protection Device(SPD, Lightening Protector)
Voltage Protection Level: ≤4.0kV
Operating Temperature Range: -40℃~+85℃


Support and Services:

DC Surge Protection Device offers technical support and service to ensure that the product is installed and operated properly. Our technical support team is available 24/7 to answer any questions or concerns you may have about the product.
We provide comprehensive support services such as telephone and email assistance, troubleshooting, installation and maintenance services. Our team of experienced technicians are knowledgeable about the product and can help you with any technical issues you may have.
We also provide regular updates and upgrades to ensure that your DC Surge Protection Device is always up to date and functioning optimally. We provide a warranty on the product to guarantee its quality and performance.
If you have any questions or concerns about the DC Surge Protection Device, please do not hesitate to contact our technical support team.

BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD 1BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD 2BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD 3BRPV3-1000 DC Surge Protection Device 1000v Surge Arrester Solar PV SPD 4
