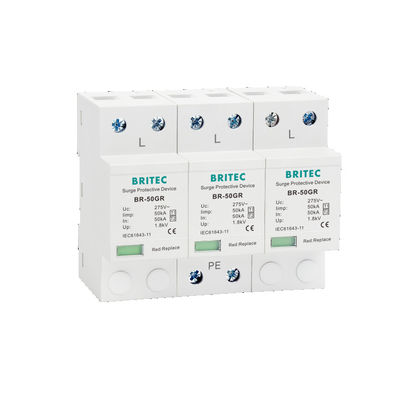

50kA Type 1 3P+N Surge Protection Device SPD Lightning Arrester for Industrial Applications surge protector class 1 2

Name: 50kA Type 1 3P+N Surge Protection Device SPD Lightning Arrester for Industrial Applications surge protector class 1 2
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 3P+N
Price: 85.00 USD
Availability: InStock

All Products

Surge Protection Device
(71)

Type 1 Surge Protection Device
(117)

Type 2 Surge Protection Device
(161)

Surge Protective Device Type 3
(29)

PV Surge Arrester
(43)

T1+T2 Surge Arrester B+C
(54)

Power Surge Protection Device
(66)

DC Surge Protection Device
(53)

Data Surge Protector
(57)

LED Surge Protection Device
(39)

Ethernet Surge Protection Devices
(41)

Lightning Strike Counter
(7)

Surge Protector Box
(6)

Electric Connection Box
(13)

Others
(25)

Lightning Rod Protection
(3)

Best Products

BR-25M 4P Type 1 Surge Protection Device Lightning protection varistor SPD lightning protection spark aresster

BR-25GR 4P 4P Type 1 Surge Protector ac type 1 spd spd t1 25ka class 1 surge arrester three phase power surge protector

BR-50GR 275 4P Type 1 Spd Lightning Protection spd t1t2 spark gap spd AC T1 Surge Protective Device

Certification

I'm Online Chat Now

50kA Type 1 3P+N Surge Protection Device SPD Lightning Arrester for Industrial Applications surge protector class 1 2

Large Image : 50kA Type 1 3P+N Surge Protection Device SPD Lightning Arrester for Industrial Applications surge protector class 1 2

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-50GR 3P+N

Payment & Shipping Terms:

Minimum Order Quantity:	20Piece/Pieces
Price:	USD 80-90 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

50kA Type 1 3P+N Surge Protection Device SPD Lightning Arrester for Industrial Applications surge protector class 1 2

Description

Item Name:	Spd T1 T2	Type:	T1 Surge Protective Device
Shipping Term:	TNT DHL FEDEX EMS UPS	Mounting:	DIN Rail 35 Mm.
Condition:	100% Original	Function:	Lighting Protection
Number Of Ports:	3P+1	MOQ:	20PCS
Location:	Indoor	SPD Classified For Test Class:	I
Enclosure Material:	Thermoplastic, UL94 V‐0	Keyword:	Lightning Protection
Highlight:	3P+N Type1 Surge Protection Device , SPD Surge Thunder Lightning Arrester , BR-50GR SPD Surge Lightning Arrester

BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka

50kA Single Phase 3+1 Type 1 Class I Lightning Surge Protective Device

Surge Protection Device Terminology

Iimp - Impulse current of Type 1 SPDs with 10/350 μs waveform
In - Nominal discharge current of Type 2 SPDs with 8/20 μs waveform
Imax - Maximum discharge current of Type 2 SPDs with 8/20 μs waveform
Up - The residual voltage measured across the terminal of the SPD when In is applied

surge protector class 1 2 Application Areas

Datacenter
Security Systems
Industrial Installation
Wind Turbine Installation
Domestic Photovoltaic
Industry Photovoltaic
Solar Farms
Energy Storage Systems
Water Treatment

surge protector class 1 2 Technology Characteristics

Product Specifications

Specification	BR-50GR 3+1	BR-25GR 1+1
Item name	Surge Arrester	Surge Arrester
SPD classification according to EN61643-11	Type 1	Type 1
SPD classification according to IEC61643-11	Class I	Class I
Max continuous operating a.c. voltage Uc	275V	275V
Lightning impulse current (10/350µs) Iimp	50kA	50kA
Nominal discharge current (8/20µs) In	50kA	50kA
Voltage protection level Up	≤1.8kV	≤1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms	3kA rms
Max. backup fuse	500A	500A
Response time tA	≤100ns	≤100ns
For mounting on	35mm Din rail	35mm Din rail
Degree of protection	IP20	IP20

Additional Information

Payment term: 30% deposit in advance, 70% before shipment, 100% T/T in advance
Certificate: TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
Logo: Customized logo with Decal/Frosted/Print available as request
Design ability: We can supply sample, OEM & ODM welcome (Design, Engineering, Photographing, Sample, Production)

Key Features

Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device

About Britec Electric

Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. We have 25 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.

Company Information

Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacturer with many years of experience. We provide quality products, competitive prices, prompt delivery and excellent service. The company carries ISO9001, ISO45001, ISO14001 management system. Various products are TUV, CB CE, RoHS certified.

Exhibition & Global Reach

Britec has a strong sales team, our surge protection devices are sold to many countries around the world. Europe and Asia are our main markets. We cooperate with global customers to help you succeed in your market.

Certifications

Britec offers full range of SPD products with CE, RoHS, TUV, SEMKO, CB certification. The company implements ISO9001 quality management system.

Product Applications

Britec has developed a wide range of products covering requirements in low voltage lightning protection, including SPD for power systems, PV systems, and data systems. These products are widely applied in electronic systems, computer networks, security systems, and protection for power industry, petroleum chemical industry and national defense industry.

Frequently Asked Questions

How about your experience?

We have our own factory and in-house test laboratory, our R&D department has more than 23 years of experience.

What's your advantage?

Fast delivery: 2-3 weeks. Large scale production drives cost down: 300,000 pieces per year. Quality recognized: cooperate with transnational companies.

Is custom design package acceptable?

Inner box and outer carton are made as per international standard. We can make packaging according to customer's needs.

Could you do OEM for us?

Sure, we accept OEM and ODM orders, please supply the letter of Authorization for the brand.

How about warranty?

5 years.

Could I buy 1pc sample first and small order?

Of course, we support sample orders, especially for new customers under certain conditions.

How long to make a sample?

3-5 days.

How does your company do regarding the quality control?

Quality is priority. We always attach great importance to quality control from the beginning to the end of production. IQC inspects the components, patrol inspection is done during production, and all goods are tested 100% before leaving the factory.
