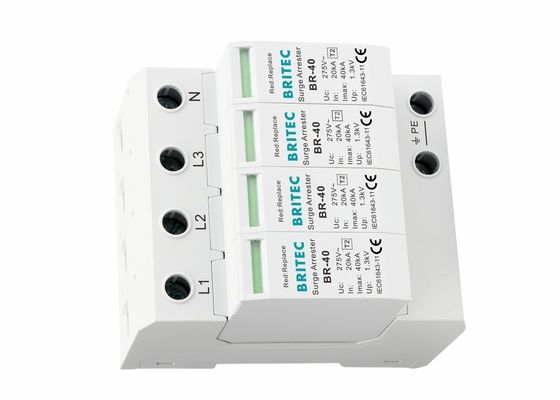

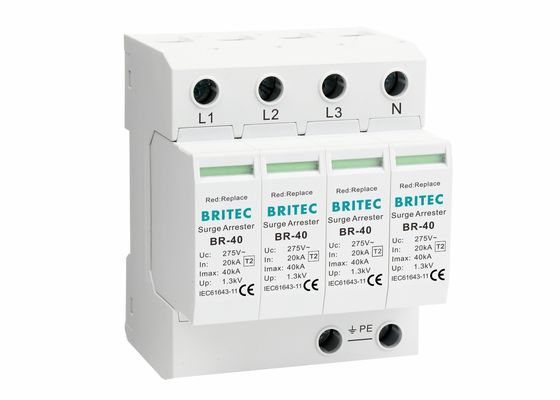

BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor

BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor

  • BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor
  • BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor
BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CB/CE/TUV
Model Number: BR-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Brand: BRITEC Product Warranty: 2 Years
Enclosure: Thermoplastic UL94-V0 Item Name: Lightning Surge Arrester
Type: Ac Surge Protector Pole Number: 4P
Uc: 275V In: 20kA
Imax: 40kA Tu: -40℃-80℃
Highlight:

4Pole Type2 Surge Protection Device

,

High Performance Varistor Type2 Surge Device

,

275V lightning surge arrester

BR-40 4P 4 Pole Type 2 Surge Protection Device Features:



- Packing detail: carton

- Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
- Product model: BR-40 4P
- Pole number: 4P.
- Application: electric protection
- Low residual voltage and quick response.
- Frequency: 50/60Hz
- Fault indication via red mark in the inspection window.



BR-40 4P 4 Pole Type 2 Surge Protection Device Technology characteristic:



Specification BR-40 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage                 Uc 275V
Norminal discharge current (8/20µs)                      In 20kA
Max. discharge current (8/20µs)                        Imax 40kA
Voltage protection level                                        Up ≤1.3kV
Max. backup fuse 125A gG
Response time                                                       tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                Tu -40℃—80℃
Operating state/fault indication green/red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0



Dimension:

BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 0

BR-40 4P 4 Pole Type 2 Surge Protection Device Application:



- Provide security protection for electronic equipment, instruments and communication lines
- Used to guard sensitive equipments from voltage spike.
- Widely used in power system, supply and distribution network automation, complete sets of equipment switchgear, etc., and can provide lightning protection for industrial control computer.



Production process:



BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 1



About us:



Wenzhou Britec Electric Co., Ltd. is a professional manufacturer, specialized in SPDs. The factory was founded in 2003 in Yueqing, Zhejiang, China. Main products are: AC surge protector, DC (PV) surge protection device, data lightning protection, LED lightning protective device and most of products got CE and TUV certificated.



BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 2



Laboratory:



BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 3



Certification:



BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 4



Shipping:



BR-40 4P 4 Pole Type 2 Surge Protection Device For 3 Phase High Performance Varistor 5



FAQ:



Q1: How about your experience?
A: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.



Q2: What's your advantage?
A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.



Q3: Is custom design package acceptable?
A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.



Q4: Could you do OEM for us?
A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.



Q5: How about warranty?
A: 2 years.
