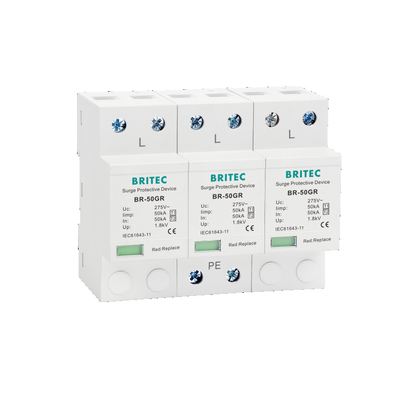

BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection

BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection

  • BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection
  • BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection
  • BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection
BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-50GR 3P+N
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: USD 80-90 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Spd T1 T2 Type: T1 Surge Protective Device
Shipping Term: TNT DHL FEDEX EMS UPS Mounting: DIN Rail 35 Mm.
Condition: 100% Original Function: Lighting Protection
Imax: 200kA Warranty: 8 Years
Place Of Origin: Zhejiang, China Package: Carton Package
Highlight:

Spd Thunder Surge Protection Device

,

50ka Type 1 Surge Protection Device

,

3P+N Surge Protection Device



50kA Single Phase 3+1 Type 1 Class I Lightning Surge Protective Device



Lightning Surge Protective Device Products Features:

Type 1 SPD can discharge lightning current with waveform 10/350μs. This, if required, will be installed in the primary distribution board at the origin of the electrical installation. A Type 1 SPD does not in itself offer the required protection level and must be used in conjunction with coordinated type 2 devices. An installation with a lightning protection system will require a Type 1 SPD.





We got CB, CE, TUV,RoHS Certificate:



Our products are tested to international standards.



Product Features
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs)
+ Visual status display





Technology characteristic:

BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 0BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 1



BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 2



Product characteristics:



Specification BR-50GR 3+1 BR-25GR 1+1
Item name  Surge Arrester Surge Arrester
SPD dassification according to EN61643-11 Type 1 Type 1
SPD dassification according to IEC61643-11 Class I Class I
Max continuous 0perating a.c. voltage      Uc 275V 275V
Lightning impulse current (10/350µs)      limp 50kA 50kA
Norminal discharge current (8/20µs)           In 50kA 50kA
Voltage protection level                              Up ≤1.8kV ≤1.8kV
Follow current extinguishing capability a.c. lifi 3kA rms 3kA rms

Max. backup fuse

500A

500A

Response time                                            tA

≤100ns

≤100ns

For mounting on 35mm Din rail

35mm Din rail

Degree of protection IP20 IP20
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
Logo       Customized logo with Decal/ Frosted/ Print are available as request

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)





Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.





Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.


BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 3

BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 4


Company Information:



Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

manufacture with many years experiences.We are providing quality products, competitive price, prompt

delivery and excellent service, and looking forward to even greater cooperation with overseas trade

based on mutual benefits.



BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 5


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world.

Europe and Asia are our main market. We would like to cooperate with global customers and help you

success in your market.


BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 6


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

implements ISO9001 quality mangement system.


BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 7


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage

lightning protection, such as SPD for power system,PV system and data , etc. All these products have

been widely applied in electronic system, computer network and security system, protection for power

industry, petroleum chemical industry and national defense industry.


BR-50GR 3P+N Type 1 Surge Protection Device Class 1 AC SPD 50ka Spd Thunder Protection 8

FAQ

How about your experience?

We have our own  factory and in-house test laboratory, our R&D department have more than

18 years experiences.





What's your advantage?

Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.

Qulaity recognized :cooperate with transnational company.





Is custom design package acceptable?

Inner box and out carton are made as per international standard.

We can make packaging according to customer's need.





Could you do OEM for us?

Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.





How about warranty?

5-8 years.



Could I buy 1pc sample first and small order?

Of course,support sample order, especially for new customers under certain condition.





How long make a sample?

 3-5 days.





How does your company do regarding the quality control?

Quality is priority. We always attach great importance to quality control from the beginning to the end of

the production. IQC inspects the components, the patrol inspection is done during production and all the

goods to be tested 100% before leaving the factory..
