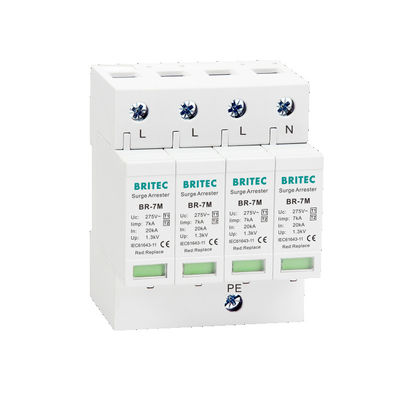

Name: BR-7M 4P 7ka T1+T2 Surge Protective Device Lightning Arrester SPD
Brand: BRITEC
SKU: BR-7M 4P
Price: 1 USD
Availability: InStock
Rating: 4.5 (200 reviews)

Home Products Surge Protection Device

BR-7M 4P 7ka T1+T2 Surge Protective Device Lightning Arrester SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CE/CB/ISO9001
Model Number:	BR-7M 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Uc:	150V, 275V, 320V	Imax:	50ka(8/20us)
Transport Package:	Standard Export Packing	Item Name::	Surge Protection Device
Class:	B+C	Type:	T1+T2
Iimp:	7kA	In:	20kA
Product Structure:	Plug	Mounting:	DIN Rail 35 Mm.
High Light:	T1+T2 Surge Protective Device , BR-7M 4P Surge Protective Device , 7ka 4P Surge Protective Device

7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device

7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device Overview:

BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012.

T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA
T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12.5kA/25kA
T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA
T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA

7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device Characteristics:

	BR-7M 150 4P	BR-7M 275 4P	BR-7M 320 4P
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V
Lightning impluse current (10/350us) Iimp	7kA	7kA	7kA
Nominal discharge current (8/20us) (L-N/N-PE) In	20kA	20kA	20kA
Max. discharge current (8/20us) (L-N/N-PE) Imax	50kA	50kA	50kA
Voltage protection level (L-N/N-PE) Up	≤0.8kV	≤1.3kV	≤1.5kV
Response time (L-N/N-PE) tA	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Protection degree	IP20
Enclosure material	Thermoplastic UL94-V0

Dimension:

BR-7M 4P 7ka T1+T2 Surge Protective Device Lightning Arrester SPD 0

General Introduction:

Surge protection device (SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or A powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

Factory:

BR-7M 4P 7ka T1+T2 Surge Protective Device Lightning Arrester SPD 1

Our certifications:

Logistics & payment:

FAQ:

Q1: Are you the manufacturer factory or trading company?
A: We are the manufacturer with professional produce experience on SPD more than 17years.

Q2: Where is your factory located?
A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
A: According to quantity, it would be 20days after comfimation of payment.

Q4: How to agent yours products?
A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
