|Place of Origin:||China|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||15-20 days after payment|
|Supply Ability:||10000 per week|
|Item:||Solar PV Surge Protection Device||Where Use:||PV System|
|Response Time (ta) Ns:||25||Max:||1000V|
1000V DC Surge Arrester,
3P Solar PV DC Surge Arrester,
DC Surge Protection Device Arrester

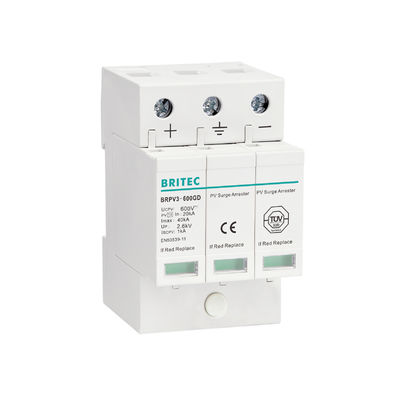

600V 1000V 40kA 3P dc solar PV surge protection device SPD Surge Arrester Lightning Suppressor
solar PV surge protection device Feature:
Applications:anti-surge, high-energy, DC power
Other characteristics:varistor, DIN rail, draw-out, DC
Voltage: 650 V, 1,000 V
Max.: 1,500 V
DC surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
solar PV surge protection device Product Details:
|SPD classification according to EN61643-11||Type 2|
|SPD classification according to EN50539-11||Class II|
|Max. continuous operating dc voltage Ucpv||1000V|
|Nominal discharge current (8/20us) In||20kA|
|Max. discharge current (8/20us) Imax||40kA|
|Voltage protection level [(DC+/DC-)→PE] Up||≤4.0kV|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃-80℃|
|Operating state / fault indication||green / red|
|Cross-section area (Min.)||4mm2|
|Cross-section area (Max.)||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermoplastic UL94-V0|
|Degree of protection||IP20|
solar PV surge protection device Dimension:
solar PV surge protection device Application:
solar PV surge protection device Advantage:
Why need surge arrester?
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
We got CB, CE, TUV,RoHS Certificate:
|Payment Term||T/T||EXW||30% T/T in advance, paid the balance before shipment.|
|CIF||30% T/T in advance, paid the balance against copy of B/L.|
|L/C||L/C amount above 50,000 usd, we can accept L/C at sight.|
|Paypal||Amount lower than 5000usd.|
|Delivery Time||15-30 days after receiving deposit.|
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
