| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BRPV3-1000 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-20 days after payment |
| Supply Ability: | 10000 per week |
| Item: | Dc Surge Protection Device | Shipping Term: | TNT DHL FEDEX EMS UPS |
|---|---|---|---|
| Customized: | Yes | Imax(8/20μS): | 40kA |
| Imax: | 40KA | IP Degred: | IP20 |
| Waveform: | 8/20 | Standard: | IEC Standard |
| High Light: | Solar PV DC Surge Protection Arrester,1000V 3P DC Surge Protection Arrester,IP20 DC Surge Protection Arrester |
||

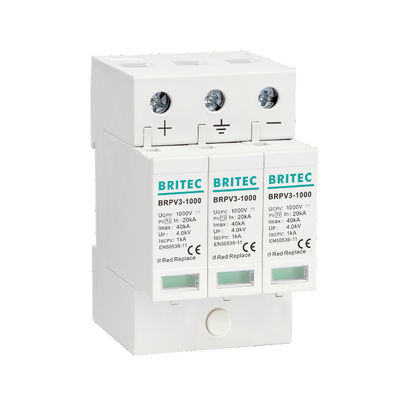

600V 1000V 40kA 3P dc solar PV surge protection device SPD Surge Arrester Lightning Suppressor
Overvoltages are brief voltage peaks of less than a thousandth of a second that exceed by many times the allowable design operating voltage of electric devices. Such overvoltage events are usually caused by lightning strikes, electrostatic discharges or power grid switching operations, and are extremely hazardous. Such surges can cause electrical systems to fail, destroy electrical and electronic equipment, or even set entire buildings on fire. An appropriate protection concept should therefore be implemented in every building.
The protector is able to protect Transient ( also called " Surge " ) such as an impulse of 8/20 Sec. waveform .
solar PV surge protection device Product Details:
| BRPV3 1000 | |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to EN50539-11 | Class II |
| Max. continuous operating dc voltage Ucpv | 1000V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤4.0kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
solar PV surge protection device Dimension:
solar PV surge protection device Application:
solar PV surge protection device Advantage:
Our Services:
Why need surge arrester?
Installation instruction:
Company profile:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Our certificate:
We got CB, CE, TUV,RoHS Certificate:
Payment:
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment. |
| FOB | |||
| CIF | 30% T/T in advance, paid the balance against copy of B/L. | ||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight. | ||
| Paypal | Amount lower than 5000usd. | ||
| Delivery Time | 15-30 days after receiving deposit. | ||
FAQ:
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
