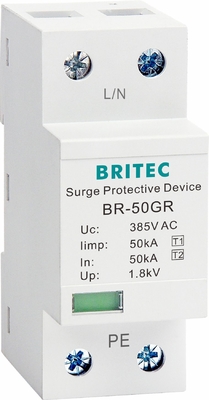

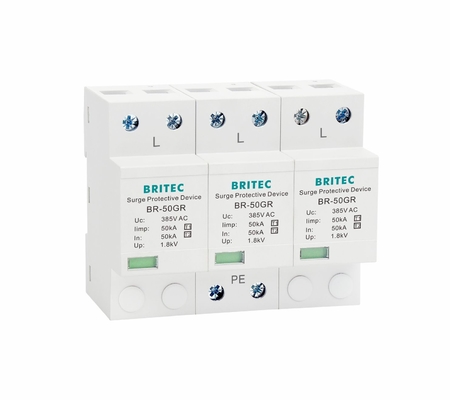

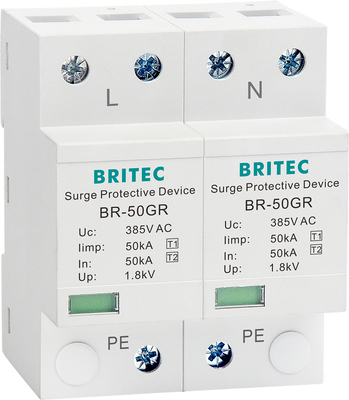

Name: BRITEC 50GR Ac Lighting Surge Protection Device Spd surge protector 50ka Lightning Arrestor
Brand: BRITEC
SKU: BR-50GR 385 4P
Rating: 4.8 (176 reviews)

Home Products Type 1 Surge Protection Device

BRITEC 50GR Ac Lighting Surge Protection Device Spd surge protector 50ka Lightning Arrestor

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 385 4P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Voltage Protector	Type:	TUV/CE/ROHS Approved Standard
Waveform:	10/350	Up:	1.8kV
In:	50kA	Condition:	100% Original
Working Conditions:	Temperature: -40 To 85℃	Standard:	IEC Standard
High Light:	50ka Surge Protection Device , 4P Spd surge protector , 50ka Spd surge protector

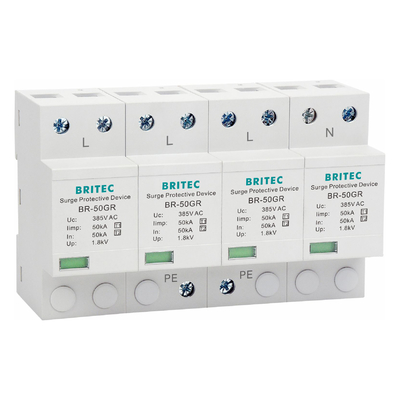

50kA three phase Type 1 Surge Protection Device TUV certificated BR-50GR 3+1

BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012.

T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA

T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12.5kA/25kA

T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA

T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA

AC SPD voltage (Un): 60Vac, 120Vac, 230Vac, 400Vac, 480VAc, 690Vac, 900Vac

AC SPD voltage (Uc): 75Vac, 150Vac, 275Vac, 320VAc, 385Vac, 440Vac, 600Vac, 750Vac, 1000Vac

We have 20 years of experience in the lighting and surge protection field and provide 3 years limited warranty.

Ac Lighting Type 1 Surge Protection Device Technology characteristic:

Specification	BR-50GR 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	385V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Voltage protection level Up	1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

BR25R 3+1 1+1.jpg

Ac Lighting Type 1 Surge Protection Device Application:

• Suitable for TT and TN-S system.

• Used in industrial systems and buildings with external lightning protection of Classes I to IV.

• For the protection of low voltage distribution systems against direct lightning strike into the overhead power supply line or external lightning protection system.

• Can be used in standard distributor housing.

Ac Lighting Type 1 Surge Protection Device Advantage:

• Competitively priced against other brands.

• High current.

• High speed action response time.

• With overheat protection.

• high reliability.

• Large flow capacity, low residual pressure.

• The structure is rigorous, the installation is convenient, and the maintenance is simple.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Ac Lighting Type 1 Surge Protection Device Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.

• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.

Company information:

Wenzhou Britec Electric Co., Ltd. is located in the Yueqing city. Britec is dedicated to development, manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed regional economy and friendly investment environment ensure Britec’s sustainable developments and continuous innovations. It is professional in producing SPD.
