Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan

  • Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan
  • Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan
  • Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan
Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BRRJ45H-8L
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-20 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Type: Rj45 Power Surge Protector Connection: RJ45 Socket
Protection Class: IP20 Material: Shielded Aluminum Alloy
Vs: 1000 Mbps Un: 5v
Nominal Discharge Current: 5kA Insertion Loss: ≤0.3dB
Compatible Devices: PoI , Personal Computer , LAN , Router
High Light:

Gigabit Ethernet Power Surge Protector

,

Rj45 Power Surge Protector

,

Interface Network Power Surge Protector

ethernet surge protection devices RJ45 Arrester Ethernet Networking Surge Protector





Color:black and white
Certification:CE,CQC
Power:220V
Imax(Maximum discharge current):10KA
Un=5v,Uc=24v
Warranty:1 year
Vs:1000Mbps
interface:RJ45
Isn:5KA
Product name:rj45 surge protector
Place of Origin:CN;ZHE


Ethernet Networking Surge Protector​ Product Details:

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 0

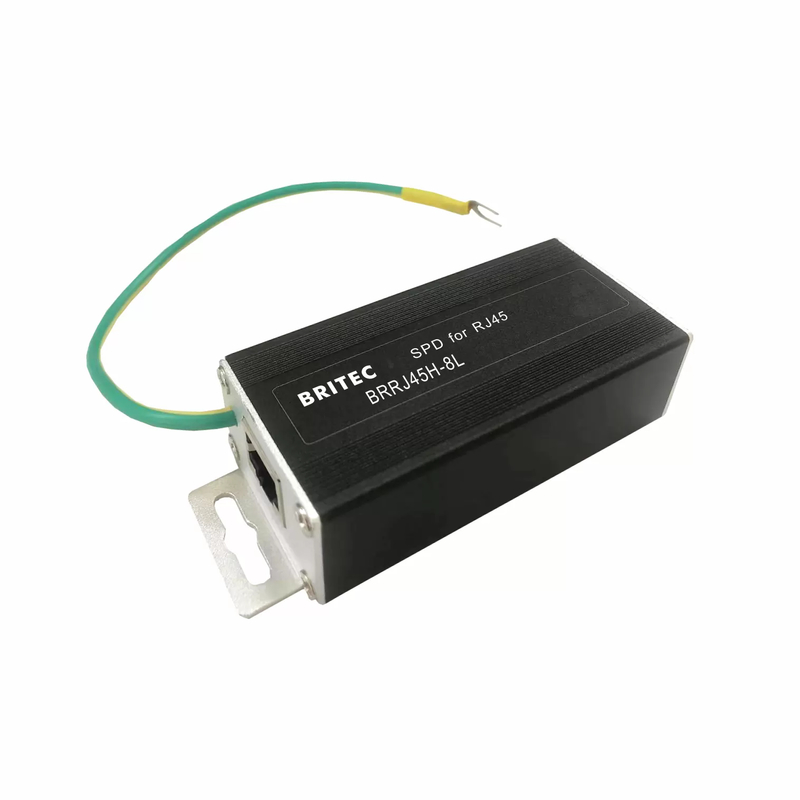

  BRRJ45H-8L
Test standards IEC61643-21
Nominal voltage                                                           Un 5V
Max.continuous operating d.c.voltage                         Uc 6V
Max.continuous operating a.c.voltage                         Uc 4V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                 Up ≤500V
Response time [line-line]                                               tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection (input/output) RJ45 socket 8 line
Data rates             1000 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20





Application:

to prevent indirect lightning or direct lightning impact and network over-voltage damage to signal equipment.


Company information:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Britec Electric Wenzhou Co., Ltd. was established in 2003.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 1

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 2

Certificate:
We got CB, CE, TUV,RoHS Certificate:

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 3
Machinery Equipment
Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 4
Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 5

Payment & Shipping:

Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 6Interface Network Rj45 Power Surge Protector Gigabit Ethernet Signal Lan 7

FAQ:


Q1:Are you a lightning surge protectors factory or lightning surge protectors trading company?
A1: We are lightning surge protectors manufacturer.


Q2: Warranty and return:
A2:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.


Q3: How can I get some lightning surge protectors samples?
A3: We are honored to offer you lightning surge protectors samples, pls contact our staff and leave detailed contact information.


Q4: Is sample available and free?
A4: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.


Q5:Do you accept customized order?
A5:Yes, we do.


Q6: What's the delievery time?
A6:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
