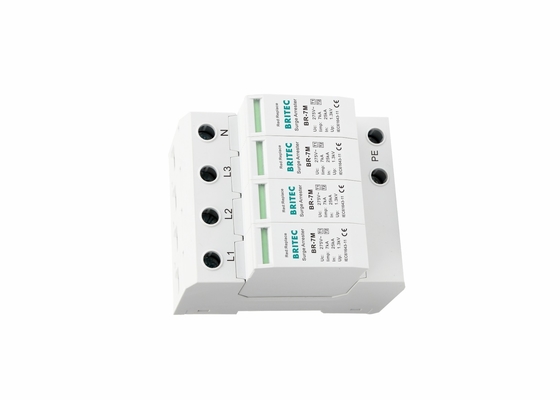

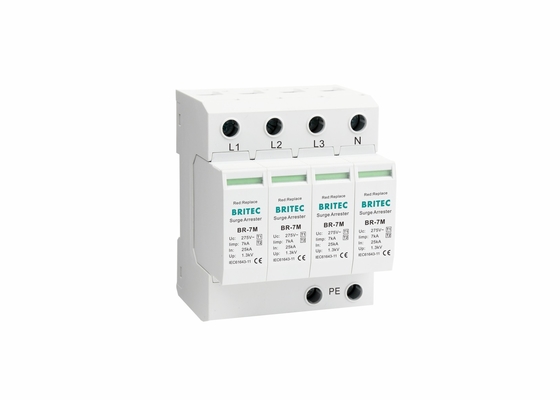

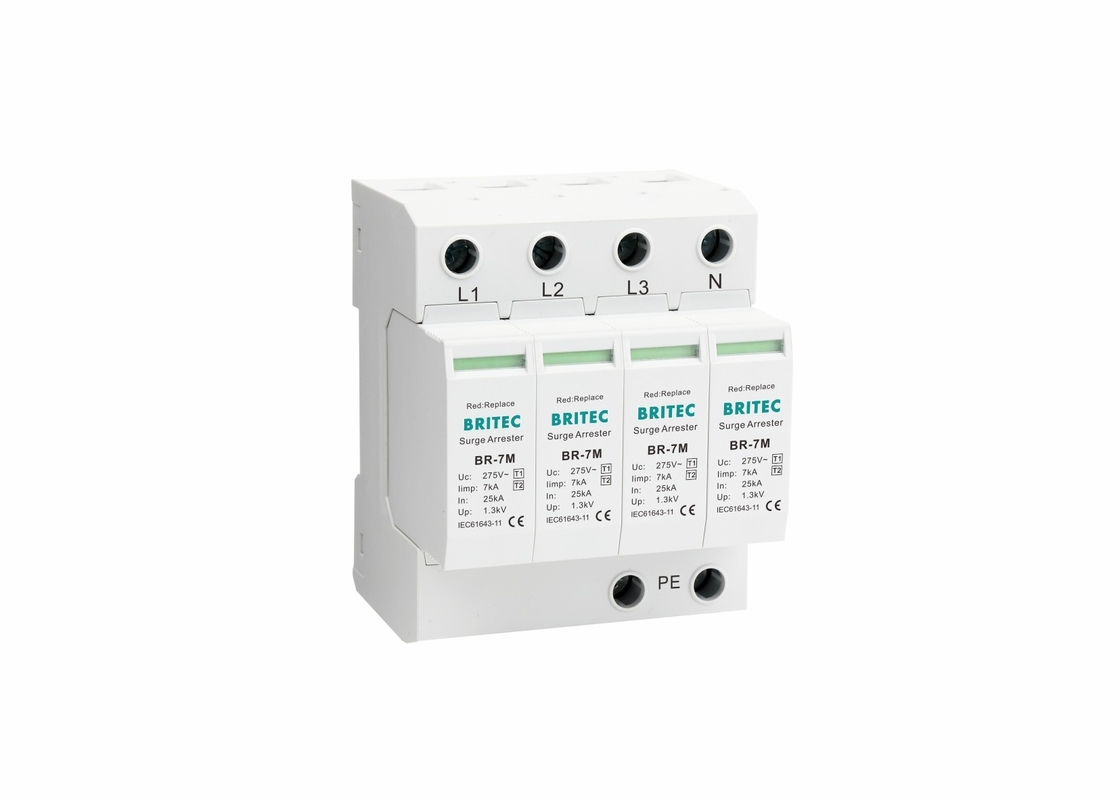

7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device

7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device

  • 7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device
  • 7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device
7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-7M 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Uc: 150V, 275V, 320V Imax: 50ka(8/20us)
Transport Package: Standard Export Packing Item Name:: Surge Protection Device
Class: B+C Type: T1+T2
Iimp: 7kA In: 20kA
Pole Number:: 4P Standard:: IEC61643-11 / EN 61643-11
High Light:

Surge Lightning Arrester Protective Device

,

7ka Surge Arrester

,

320V Surge Arrester Protective Device

7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device


7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device Overview:

BR-7M 4P surge protective device (hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 320v TN-S power supply system
Prewired complete unit consisting of a base part and plug-in protection modules
It protect to indirect and direct lightning effect or other transient overvoltage
High discharge capacity due to heavy-duty zinc oxide varistors
SPD design according with GB18802.1/IEC61643-1 standard.


7ka T1t2 Surge Arrester Lightning Arrester 4P Surge Protective Device Characteristics:


   BR-7M 150 4P    BR-7M 275 4P    BR-7M 320 4P
SPD classification according to EN 61643-11Type 1 + Type 2
SPD classification according to IEC 61643-11Class I + Class II
Max. continuous operating a.c. voltage               Uc150V275V320V
Lightning impluse current (10/350us)                Iimp7kA7kA7kA
Nominal discharge current (8/20us) (L-N/N-PE)   In20kA20kA20kA
Max. discharge current (8/20us) (L-N/N-PE)   Imax50kA50kA50kA
Voltage protection level (L-N/N-PE)                    Up≤0.8kV≤1.3kV1.5kV
Response time (L-N/N-PE)                                   tA≤25ns≤25ns≤25ns
Operating temperature range                              Tu-40℃—80℃
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Protection degreeIP20
Enclosure materialThermal plastic UL94-V0


Dimension:

7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device 0


General Introduction:

Surge protection device (SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or A powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

Factory:


7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device 1

Our certifications:

7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device 2

Logistics & payment:

7ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device 37ka T1+T2 Surge Protective Device 320V Lightning Arrester 4P Surge Protection Device 4

FAQ:

Q1: Are you the manufacturer factory or trading company?
  A: We are the manufacturer with professional produce experience on SPD more than 17years.

Q2: Where is your factory located?
  A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
  A: According to quantity, it would be 20days after comfimation of payment.

Q4: How to agent yours products?
  A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
  A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
