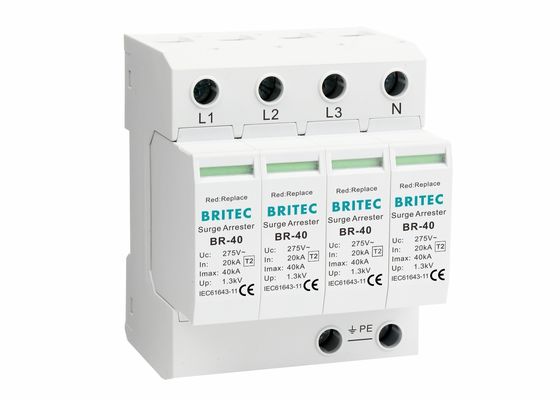

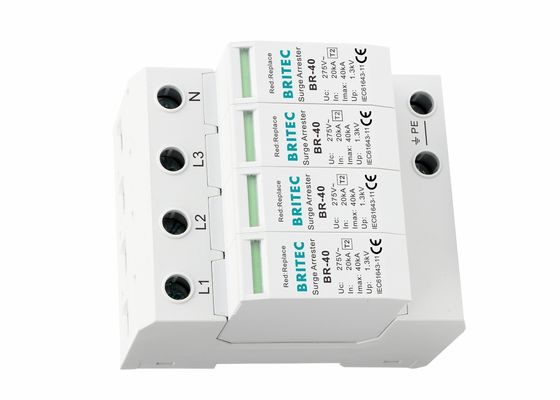

Type 2 20kA 40kA Surge Protector Device Description:
• BR-40 4P Surge protection devices (SPDs) are suitable for the TN-S power supply system of 50/60Hz, rated voltage 440V AC and below.
• High energy MOVs equipped with specific thermal disconnector and related failure indicators.
• Protecting equipment from indirect lightning impulse and other transient overvoltage.
• Consistent pluggability
• With max. discharge current of 40kA
• With or without floating remote indication contact
• The SPD is designed in accordance with IEC Class II, reliable performance and low price.
Type 2 20kA 40kA Surge Protector Device Product Details:
| |
BR-40 150 4P |
BR-40 275 4P |
BR-40 320 4P |
BR-40 385 4P |
BR-40 440 4P |
| SPD classification according to EN61643-11 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification according to IEC61643-11 |
Class II |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating a.c. voltage Uc |
150V |
275V |
320V |
385V |
440V |
| Nominal discharge current (8/20us) In |
20kA |
20kA |
20kA |
20kA |
20kA |
| Max. discharge current(8/20μs) Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
| Voltage protection level Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
| Voltage protection level 5kA Up |
≤0.6kV |
≤1kV |
≤1.2kV |
≤1.3kV |
≤1.5kV |
| Max. backup fuse |
100A gG |
100A gG |
100A gG |
100A gG |
100A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
green / red |
| Cross-section area (Min.) |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
SPD installation instructions:
Tips: What is a surge protection device?
• The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.
• Surge protective devices are designed to minimize the effects of the indirect and direct lightning or other transient overvoltage surges, suitable for surge protection in residential, tertiary industrial and other industrial applications. SPD has several protection modes: L-L, L-G, L-N, N-G and its combinations.
• The SPD surge protector is an indispensable device for lightning protection in the electronic equipment. Its role is to restrict the transient overvoltage that enters the power line and signal transmission line to the voltage range that the device or system can withstand, or to discharge powerful lightning current into the ground, thus to protect the equipment or systems from shocks.
A Surge Protective Device (SPD) operation is by limiting transient overvoltages and diverting surge currents to ground, preventing damage to electrical equipment.
