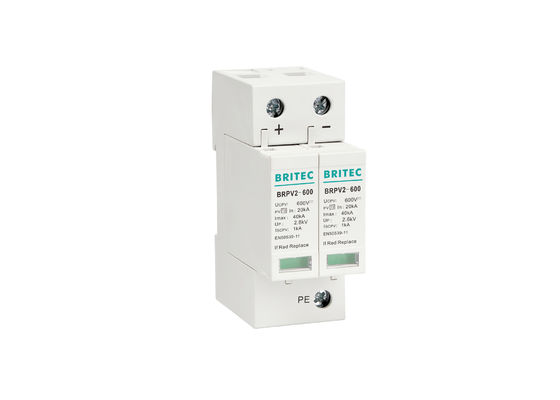

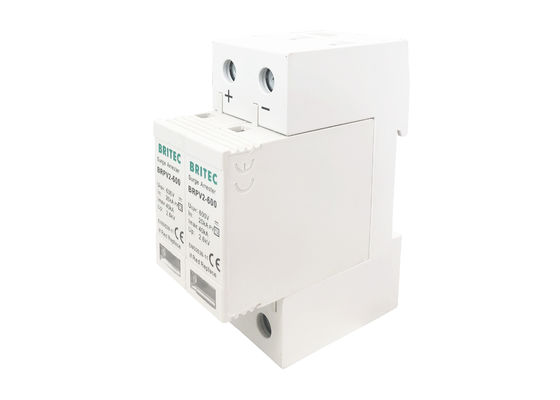

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor

  • Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor
  • Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor
Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2 600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 20 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Product Name: 2p DC600V 20-40ka SPD Nominal Discharge Current In: 20kA
Working Temperature: -40℃—80℃ Material: Thermalplastic UL94-V0
Rated Voltage: 600V Imax: 40kA
Indicated: Normal: Green; Abnormal: Red Item: PV Surge Arrester
Class: Type 2 Standard: IEC61643 / EN50539-11
High Light:

PV Lightning Surge Protection Device

,

600v Solar Surge Protector

,

DC Surge Lightning Arrestor

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor



Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Product description:

BRPV2-600 surge protector is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection.
Protective level up(KV): 2.6
The maximum continuous operating voltage DC600V.
Max discharge current(8/20μs)Imax(KA): 40
Installation in the dc power supply system, always of lightning current and directly or indirectly other instantaneous overvoltage protection.


Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Product Details:



  BRPV2 600
SPD classification according to EN61643-11 Type2
SPD classification according to EN50539-11 Class II
Max.continuous operating d.c.voltage            Ucpv 600V
Nominal discharge current(8/20us)                      In 20kA
Max. discharge current(8/20us)                       Imax 40kA
Voltage protection level [(DC+/DC-)→PE]          Up ≤2.6kV
Response time                                                     tA ≤25ns
Operating temperature range                              Tu -40℃-80℃
Operating state/ fault indication green / red
Cross-section area(Min.) 4mm²
Cross-section area(Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection IP20
Order Code B8013
Order Code(With remote signal) B8015


Dimension:

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor 0


Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Features:

a. Module design, convenient installation, with easy electric maintains operation
b. Built-in over current and over heat, temperature control open circuit technology
c. Adopt independent intelligence property right and high performance sensitivity resistance plates
d. Small creepage current, fast response time, remnant low voltage
e. With remote connection, can realize remote control

According to PV standard EN 50539 and IEC 61643:

The DC SPD complies with PV standard EN 50539-11 and future standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Solar Surge Protector PV Lightning Protection 600v DC Surge Arrester Lightning Arrestor 4


FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.

Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
